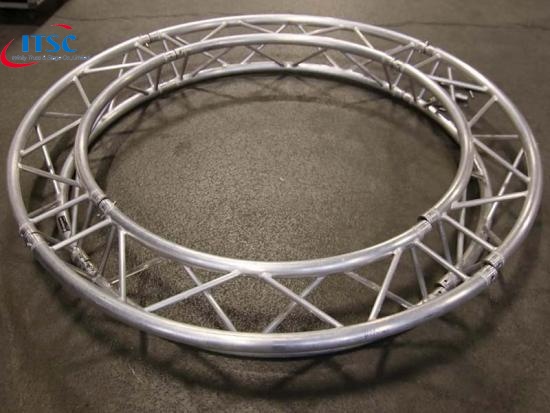

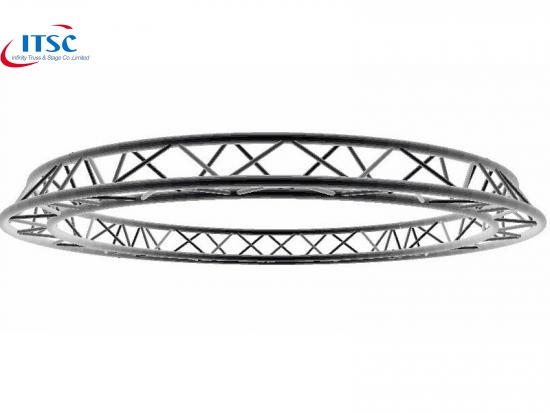

290mm Triangular Apex Up Round Truss Rigging:
This Global Triangular Round Truss Apex Up is configuarted with only the Spigot Triangular Truss ITSC-CT29 and simply connected with the conical coupler connectors. It is customized according to some exhibition booths requirements.
Features:
- Mini and simple
- TUV and SGS approved
- Fool proof assemble
- Any diameter customized
Specification:
| Item | 290mm Apex up round truss structure |
| Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
| Types | Single tube circle |
| Main tubes | 50 x 2 mm |
| Bracing | 20x2mm |
| Connection type | Conical couple system |
| HS code |
7610900000 |
Arc Lenghts:
| Diameter（m) | Arc |
| 1.5 m | 2 x 180 degree arcs |
| 2 m | 2 x 180 degree arcs |
| 3 m | 4 x 90 degree arcs |
| 4 m | 4 x 90 degree arcs |
| 5 m | 8 x 45 degree arcs |
| 6 m | 8 x 45 degree arcs |
Other length can be custom on request.
