40ft Stage Truss System Triangular Roof for Nigeria Churches:
Nigeria Churches are very fascinated by 40ft Aluminium Stage Truss Triangular Roof System supplied by Infinity Truss & Stage Co., Limited. It features 40x40ft event stages and 42.6x42.6ft aluminium truss triangular roof system. This medium dimensions of stage truss roof is portable and easy to set up.

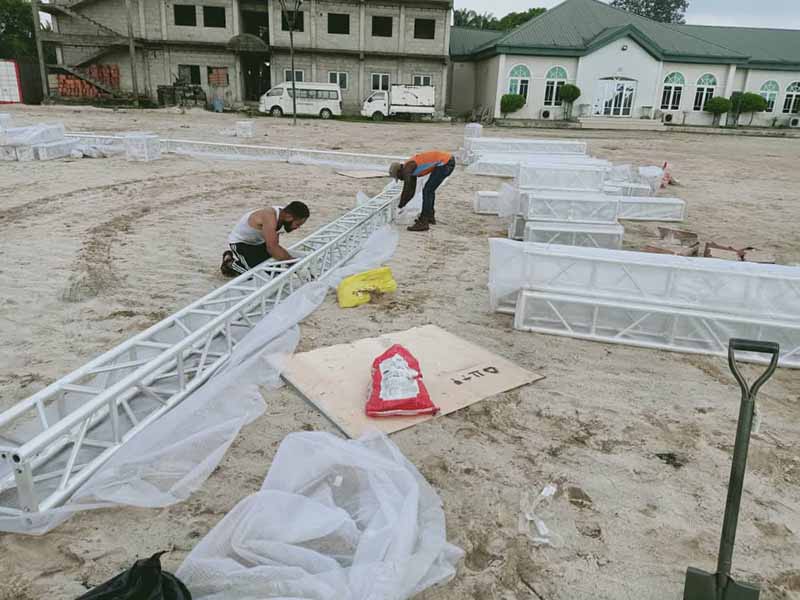

The whole Box Truss Roof is tested before delivery by ITSCtruss work team.
The hotsale Stage lighting Truss Systems in Nigeria are as following designs shows:
Truss System Design:
ITSCtruss offers drawing for every Stage Truss System design for free! This truss stage setup is with 40x40ft (12.2x12.2m) event stage platforms and 42.6x42.6ft(13x13m) Truss System.
Features:
- Cheap price is available if you accept the bolt trusses.
- Quick installation is also acceptable if you accept higher price for the connical coupler connection system.
- Different optons are available for Nigerian people's different needs.
- TUV & SGS certificates.
Cheap Stage Truss Option:
If you look into your budget, this Cheap Stage Truss Option would be your best choose. Just use all the ITSC-BS30 truss rigging and the 4 x 8 Stage Platform in stock and you finally set up the whole structure. Its cost for Nigeria market price is at USD22000/set;
Specification for Cheap Stage Truss Option:
Main rigging | ITSC-BS30 |
Towers | 6 Sets |
Connection | Bolt and screw |
Truss roof dimensions | 42.6x42.6ft(13x13m) |
Stage platforms | 50pcs x 4 x 8ft stage platform |
Truss Selfweight | Approx.1990kg |
Stage selfweight |
3000kg |
Transportation | 38 m3 |
Truss Roof Loading capacity | Approx.3424 kg |
Stage System loading capacity |
Approx. 90000 kg |
Max windspeed | 25m/s |
Standard Stage Truss Option:
The Standard Stage Truss Option is constructed with ITSC-CS39 truss beam and ITSC-CS29 pillars and the 4x4 stage platform systems to be the easier setup and save time for event managment companies, party planners, event organiser, social event planning,ect.
Specification for Standard Stage Truss Option:
Main rigging | ITSC-CS39 |
Towers | 6 Sets |
Connection | Connical and coupler |
Truss roof dimensions | 42.6x42.6ft(13x13m) |
Stage platforms | 100pcs x 4 x 4 ft stage platform |
Truss Selfweight | Approx.2667kg |
Stage selfweight |
4500kg |
Transportation | 40 m3 |
Truss Roof Loading capacity | Approx.4708kg |
Stage System loading capacity |
Approx. 5120kg |
Max windspeed | 28m/s |
