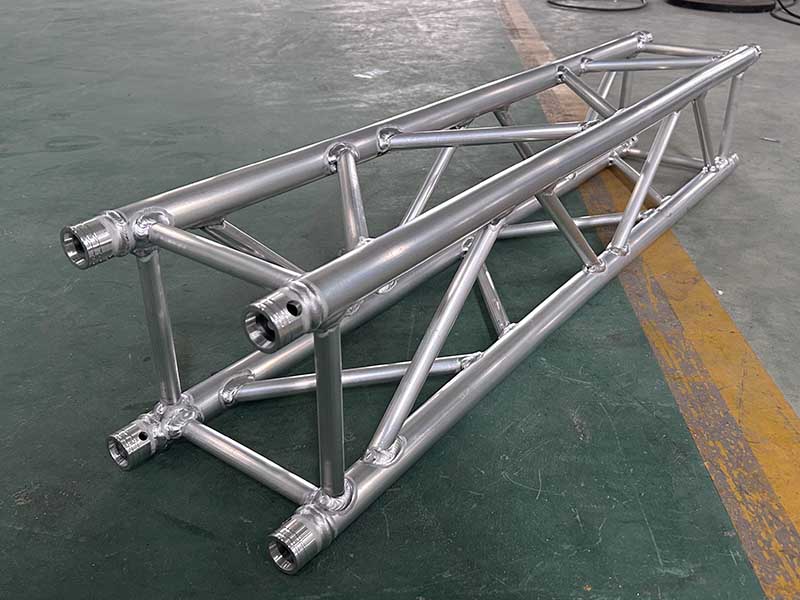

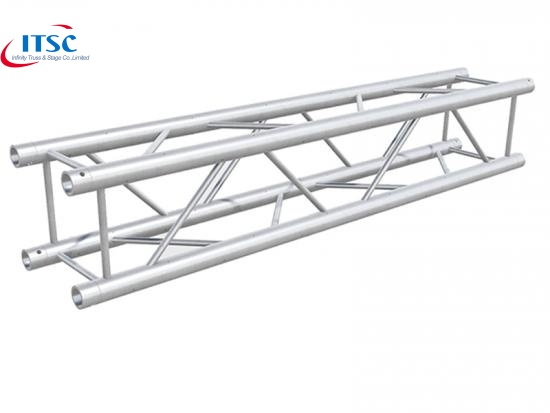

203x203mm Box Lighting Truss Bar With Conical Coupler Connection:
This Light Box Truss Bar is configurated with 32x2mm main tubes and 10x2mm bracing. It is widely used for indoor lighting truss setup.
Features:
- Every pics is no more than 8kg (17lbs).
- Loading capacity 225kg ( 500 lbs) at 6m span.
- Equiped with conical cupler system which is very easy to instal.
- Modular and flexible use in DJs, medias, event stages,ect.
Package Contents:
- All lengths of truss bars required
- Sets of conical coupler and pins and R clips demaned for the required Grid Box Truss Structures
Specification:
| Item name | 203x203mm box truss bars for sale |
| Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
| Types | Square |
| Main tubes | 32x2mm |
| Braces | 10x2mm |
| Connection type | conical cupler connection |
| HS code |
7610900000 |
Length and Weight:
| Length | Weight |
| 50 cm | 2.15 kg |
| 100 cm | 3.25 kg |
| 150 cm | 5.55 kg |
| 200 cm | 6.2kg |
| 250 cm | 7.55 kg |
| 300 cm | 9.5 kg |
Other length can be custom on request.
Application:
The Square Box Truss Bar is compative in shape and easy to install, lightweight and portable, very durable for small events like DJ booths, exhibition booths, night clubes,ect.
