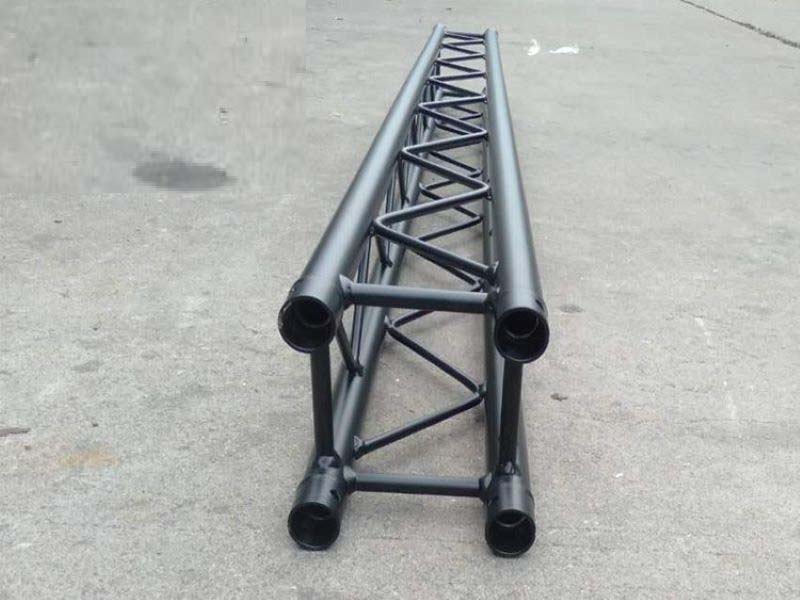

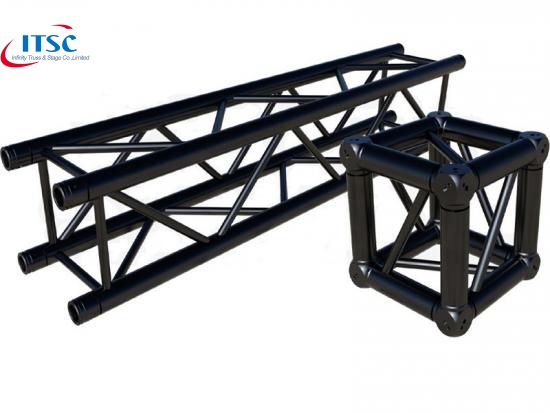

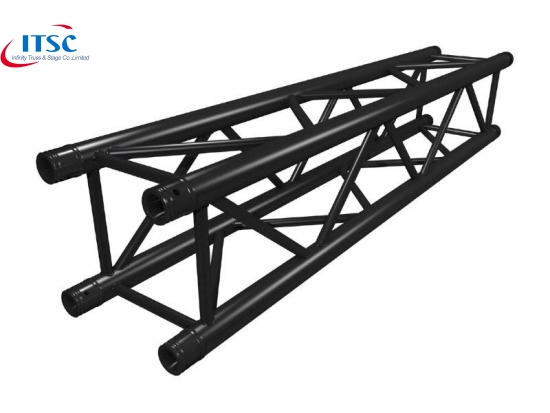

10 Inch Aluminium Metal Stage Frame Black Box Truss Rigging :
This 10" x 10“ lighting Truss Rigging is featured with main tube OD1.96" x 0.118" and Sub-main tubes OD0.98" x 0.078", Its Centre Poinl Load Capacity is 450kg at 10m span. And it is small shape for all dj and outdoor events enetertainment. It is customized according to concerts events rigging special designs.
Features:
- 4- point nodding.
- TUV and SGS approved.
- Free design and technology support.
- OEM and ODM acceptable.
- Powder coating and anodizing to any color without any peeling.
Specification:
Item | 10x10 in metal black lighting box truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Square |
Main tubes | 1.96" x 0.118" |
Sub-Main tube | OD0.98" x 0.078" |
Braces | 0.98" x 0.078" |
Connection type | Conical couple system |
Length and Weight:
Length | Weight |
50 cm | 4.95 kg |
100 cm | 7.65 kg |
150 cm | 10.35 kg |
200 cm | 13.05 kg |
250 cm | 11.55 kg |
300 cm | 18.5 kg |
Other length can be custom on request.
Application:
This 10x10 in black lighting truss is widely used for studio, DJ, concert stage hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
