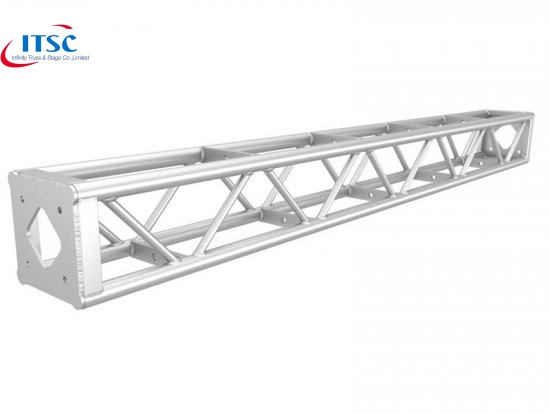

10" x 10" Light Duty Outdoor Mini Box Truss Rigging :
This 10 Inch DJ Box Truss is featured with main tube OD1.96" x 0.118" and Sub-main tubes OD0.98" x 0.078", Its Centre Poinl Load Capacity is 320kg at 6m span. And it is mini shape for all dj and outdoor events enetertainment. It is customized according to concerts events rigging special designs.
Features:
- 4- point nodding.
- TUV and SGS approved.
- Free design and technology support.
- OEM and ODM acceptable.
- Powder coating and anodizing to any color without any peeling.
Specification:
Item | 10x10 inch spigoted box truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Square |
Main tubes | 1.96" x 0.118" |
Sub-Main tube | OD0.98" x 0.078" |
Braces | 0.98" x 0.078" |
Connection type | Conical couple system |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
50 cm | 4.95 kg |
100 cm | 7.65 kg |
150 cm | 10.35 kg |
200 cm | 13.05 kg |
250 cm | 11.55 kg |
300 cm | 18.5 kg |
Other length can be custom on request.
Application:
The 10 Mini Box Truss is widely used for studio, DJ, concert stage hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
