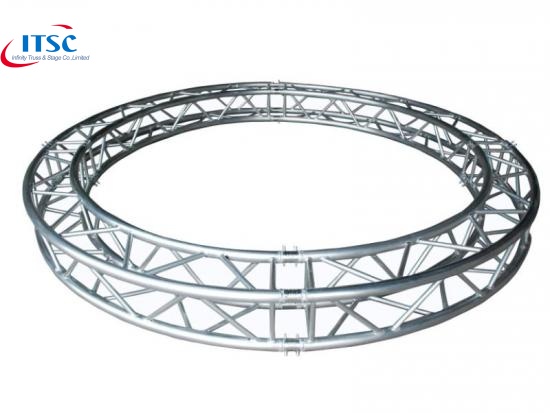

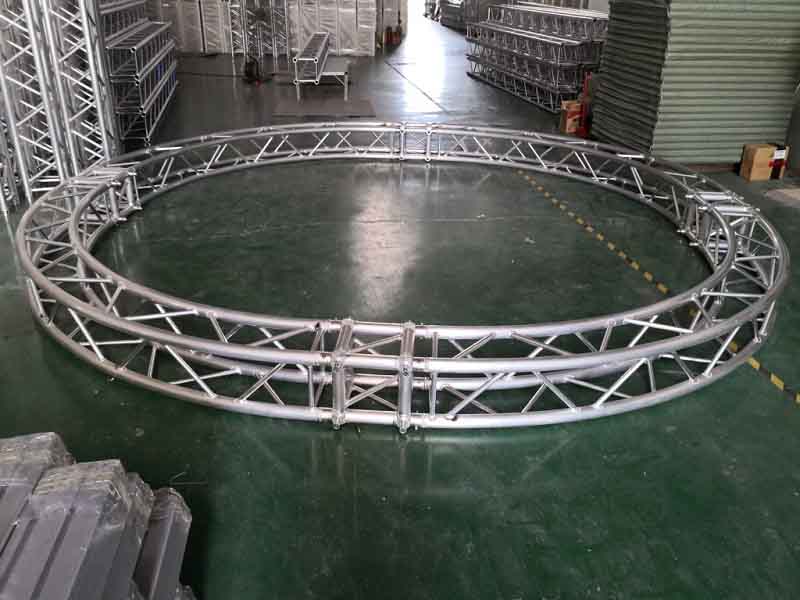

290mm Box Truss Circular Bat Beam 4m Dia:

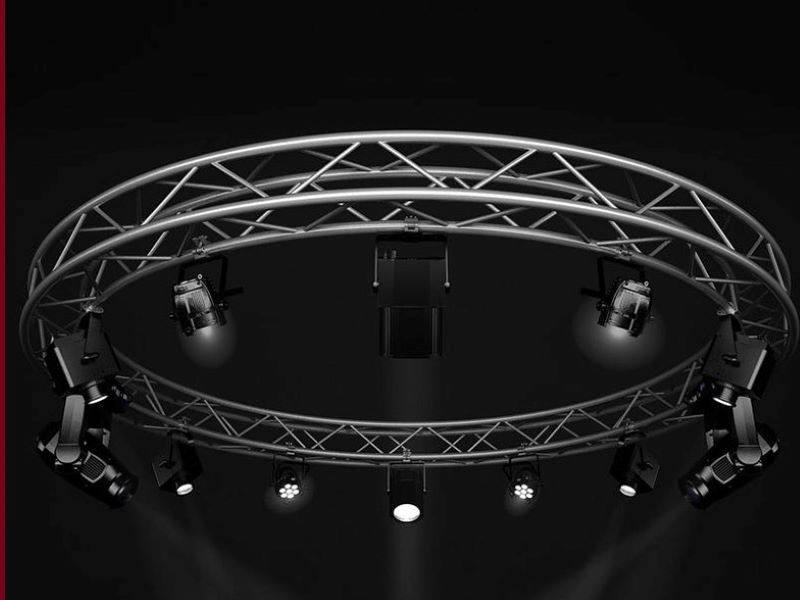

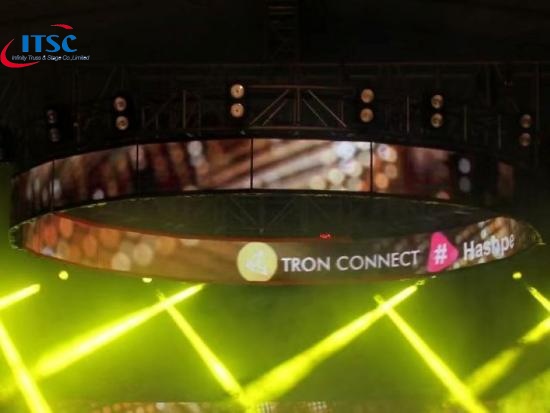

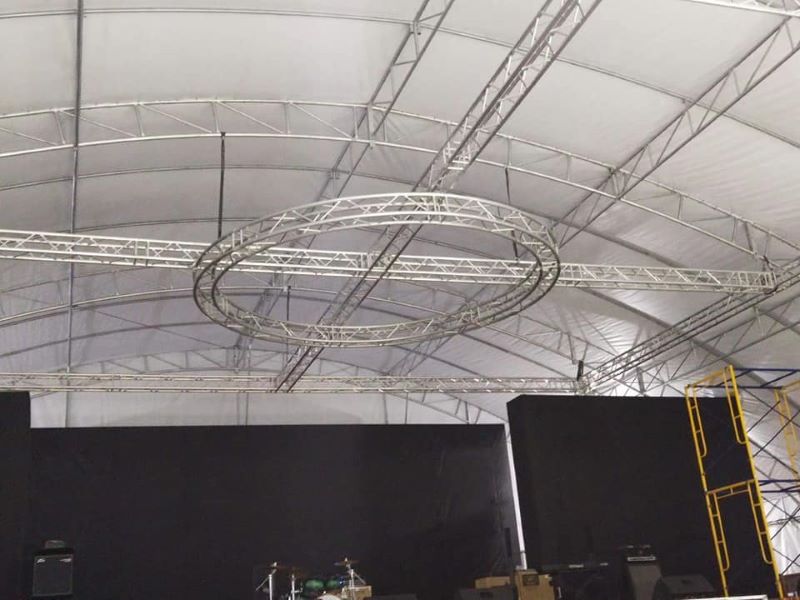

This Box Truss Circular Bat is configuarted with the spigoted box truss ITSC-CS29 and simply connected with the connical coupler connectors. It is customized according variety of needs: stage lighting truss systesms, indoor and outdoor decorations, school or theatre ceiling lighting hangers, celebration events,ect.
Features:
- Quick to install.
- stronger for bigger events.
- Fool proof assemble.
- Any diameter customized.
Specification:
Item | 4m dia circular truss with ITSC-CS29mm box truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Square Truss circle |
Main tubes | 50 x 2 mm |
Bracing | 25x2mm |
Connection type | Conical coupler system |
HS code |
7610900000 |
Capacity |
3 Suspension Points: UDL 180kg/m; CLP 570kg |
4 Suspension Points: UDL 290kg/m; CLP 720kg |
|
6 Suspension Points: UDL 521kg/m; CLP 930kg |
|
8 Suspension Points: UDL 775kg/m; CLP 1101kg |
|
10 Suspension Points: UDL 998kg/m; CLP 1190kg |
Arc Lengths:
Diameter(m) | Arc | Weight |
1.5 m | 2 x 180 degree arcs | 31kg |
2 m | 2 x 180 degree arcs | 41.2kg |
3 m | 4 x 90 degree arcs | 60.4kg |
4 m | 4 x 90 degree arcs | 82.4kg |
5 m | 8 x 45 degree arcs | 114.0kg |
6 m | 8 x 45 degree arcs | 132.2kg |
Other length can be custom on request.
