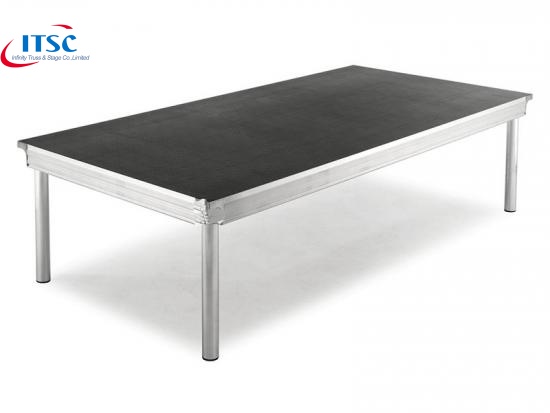

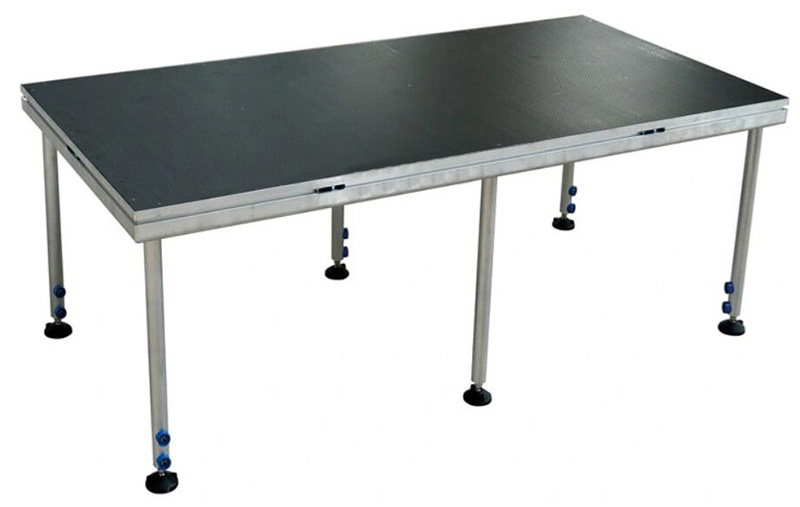

1x2m Quicklock Aluminum Modular portable stage:
Outdoor Portable Stage is supported by aluminum frame and 18mm birch tree fiber plywood board covered with a smooth phenolicresin anti-humidity waterproof topping and used for indoor and outdoor events. The height can be adjustable in several heights from 20-200cm. Any dimensions of staging lighting system can be completed by locking the stage legs with each other.
Features:
- Waterproof and anti-slip for outdoor and indoor concert events.
- Aluminum frame and lightweight for mobile use.
- DIY fast assembling, no any tools.
- Height adjustable for uneven floor.
- Interconnected framework acting as ballast systems for truss roof constructions.
- Factory price only.
Specification:
| Item | 1x2m aluminium modularquick lock portable stageplatform |
| Material | Aluminum Alloy 6061-T 6 |
| Dimensions | 1x2m |
| Types | Square |

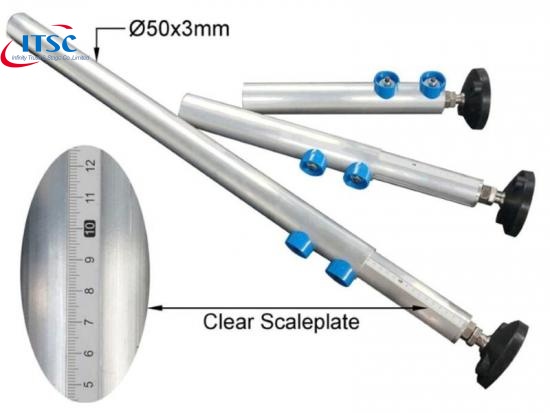

| Main tubes | 50 x 3 mm |
| Stage Topping | 18 mm birch tree fiber plywood board covered with a smooth phenolic resin anti-humidity layer, anti-slip, waterproof |
| Self-weight | 45 kg /pcs |
|
Volume |
0.2 m3/pcs |
| Capacity |
500kg /m2 |
| HS code |
7610900000 |
How to build this Portable Stage Music?
- Loosen the holes at the back angle of the stage deck.
- Put the legs inside each hole one by one and lock them firmly.
- Erect the stage decks and roll out the keys from the deck with a tool.

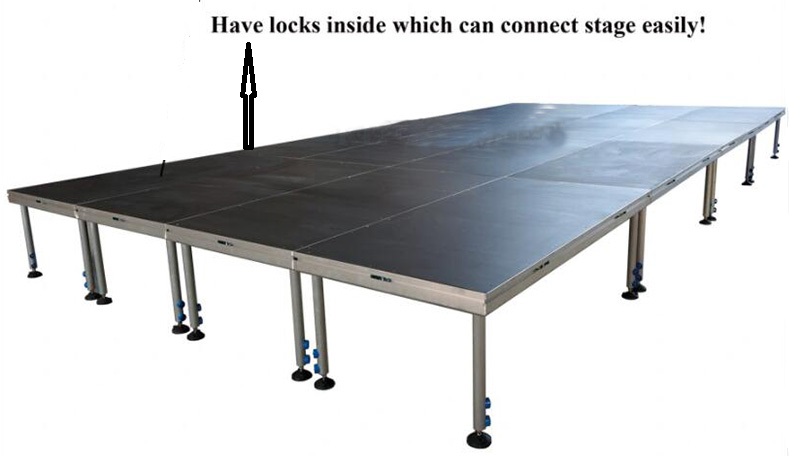

- Lock the key in one deck to the groove in another deck and fix it.
The whole Portable Stage Panels are DIY setup without any other special tools.
