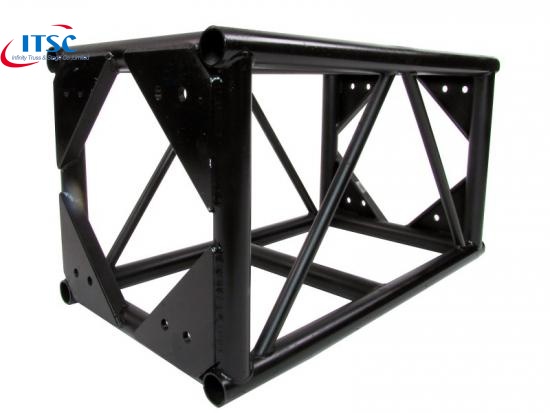

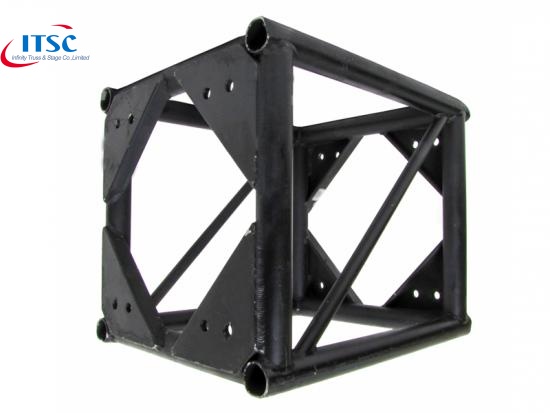

500mm Aluminum Black Medidas Box Truss Frame;
This Aluminum Truss Frame is powder coated black and developed from the standard ITSC-BS50 Bolt Truss. It features with main tubes 50x3mm and bracing 30x2mm only. It is strengthened to be stage roof masks to offer heavier vertical forces from the top beam trusses.
Features:
- 4- point chord.
- TUV and SGS approved.
- OEM and ODM acceptable.
Specification:
| Item | 500X500mm Black Bolt Box Truss |
| Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
| Types | Square |
| Main tubes | 50 x 3 mm |
| Sub-Main tube | 30 x 2 mm |
| Braces | 25 x 2 mm |
| Connection type | Bolt |
Length and Weight:
| Length | Weight |
| 50 cm | 6.15 kg |
| 100 cm | 10.80 kg |
| 150 cm | 15.45 kg |
| 200 cm | 20.1 kg |
| 250 cm | 24.27 kg |
| 300 cm | 29.40 kg |
Other length can be custom on request.
Application:

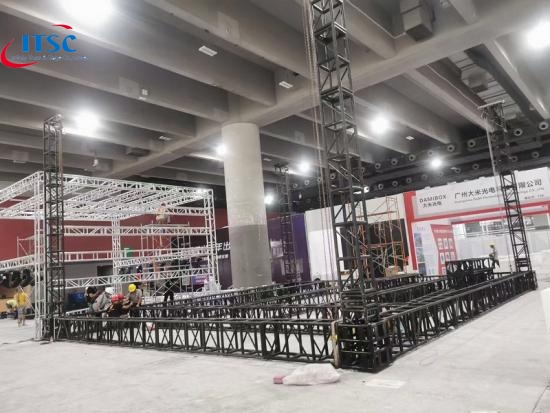

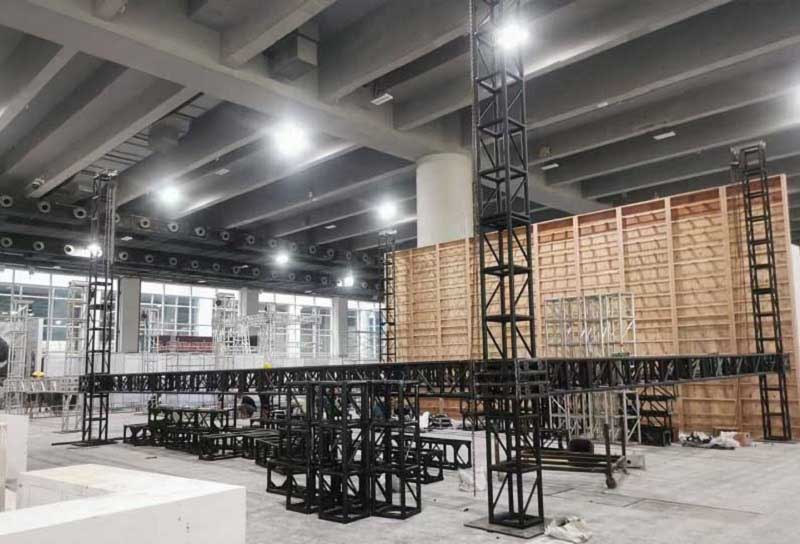

This Aluminum Lighting Truss is widely used for big concert stage hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
