12 in Black Box Stage Truss Beam Online Price For Sale:

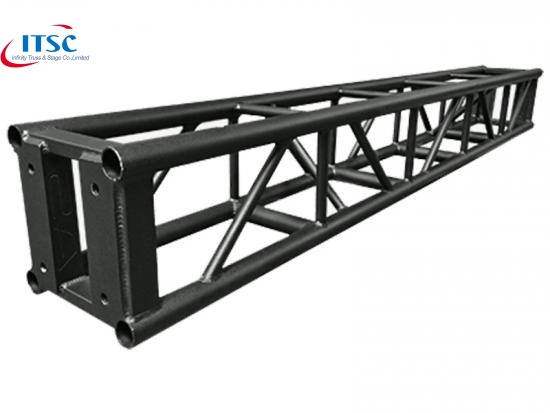

This Black Box Truss Equipment is constructed with main tubes 2" OD x 1/8", and diagonals are 1" OD x 1/8", and it is plated end is connected with bolt and nuts.
Its standard lengths can are usually 1.65', 3.28', 4.92', 6.56', 8.20', 10' ect. Other special length can be custom on request as well.
It is usualy equipped with other box truss corners and top plates to construct a whole Box Truss Roof.
Find the most reliable Black Box Truss Manufacturers from China? ITSCtruss would be your best choice, for we have been in the iindustry for since 2010, and our black trusses is very high quality without any peeling when use.
Features:
- 4- point nodding.
- TUV and SGS approved.
- Free design and technology support.
- OEM and ODM acceptable.
- Powder coating and anodizing to any color without any peeling.
Specification:
Item | 12 black box truss segment |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Square |
Main tubes | 2" OD x 1/8 |
Sub-main tubes | 1" OD x 1/8" |
Braces | 1" OD x 1/8" |
Connection type | Plated with Bolt |
Length and Weight:
Length | Weight |
1.65' | 5.18 kg |
3.28' | 8.25 kg |
4.92' | 11.32 kg |
6.56' | 14.40kg |
8.20' | 17.47 kg |
10' | 20.30 kg |
Other length can be custom on request.
Application:
This Grid Box Truss Black is widely used for outdoor events, hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
