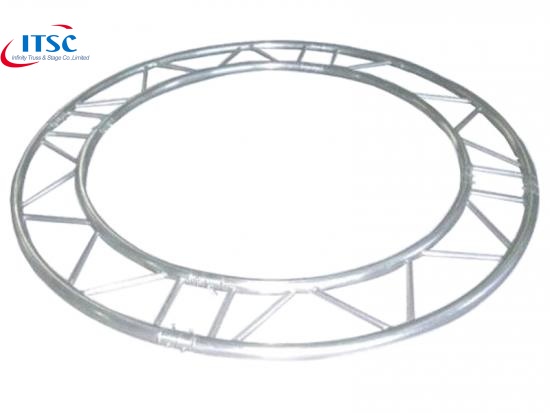

4ft Dia Mini Lightweight Global Ladder Beam Flat Circular Truss:
The Global Flat Circular Truss is configuarted with only the Flat Ladder beam Truss ITSC-CL29 and simply connected with the conical coupler connectors. Its main tube 50x2mm and bracing 20x2mm.
Features:
- Mini and simple
- TUV and SGS approved
- Fool proof assemble
- Any diameter customized
- Conical coupler for quick installation
Specification:
Item | 4ft Dia flat circular truss ring with 290mm ladder beam |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Ladder Truss Circle |
Main tubes | 50 x 2 mm |
Bracing | 20x2mm |
Connection type | Conical couple system |
Self weight |
11.5kg |
Transportation volume | 0.06m3 |
HS code |
7610900000 |
Arc Length:
Diameter(m) | Arc |
1.5 m | 2 x 180 degree arcs |
2 m | 2 x 180 degree arcs |
3 m | 4 x 90 degree arcs |
4 m | 4 x 90 degree arcs |
5 m | 8 x 45 degree arcs |
Other length can be custom on request.
