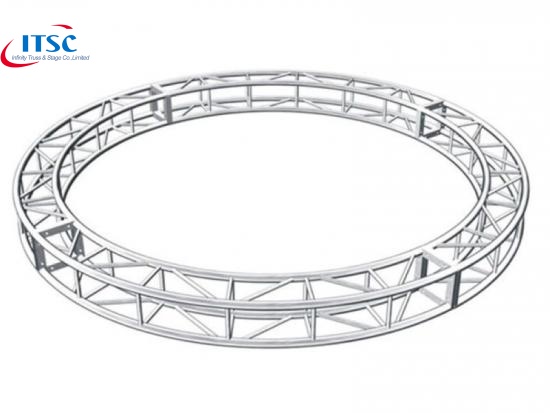

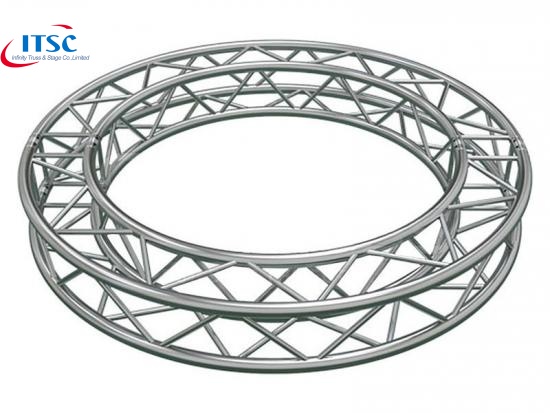

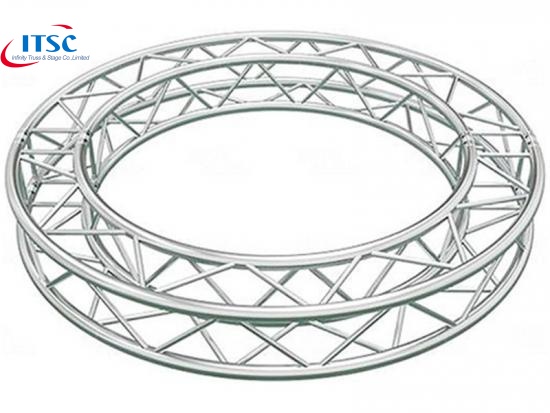

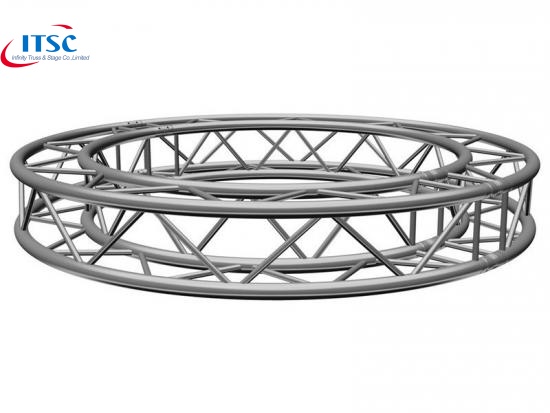

Lightweight Plated Silver Square Circular Truss Cheap:

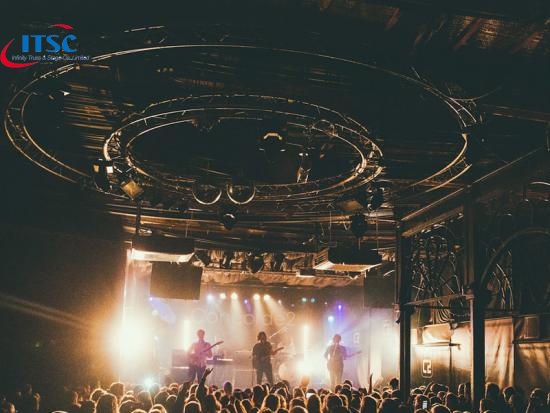

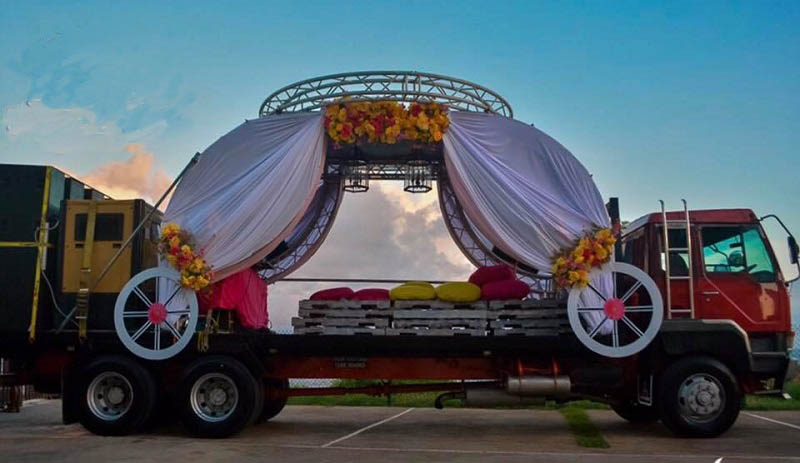

This Plated Square Circular Truss is configuarted with only the Plated Bolt Square Truss ITSC-BS30 and simply connected with the connical coupler connectors. It is customized according variety of needs: stage lighting truss systesms, indoor and outdoor decorations, school or theatre ceiling lighting hangers, celebration events,ect.
Features:
- Quick to install
- stronger for bigger events
- Fool proof assemble
- Any diameter customized
Specification:
Item | 16ft Dia Circular Truss with 300x300mm bolted truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Square Truss circle |
Main tubes | 50 x 2 mm |
Sub-main tube | 30x2mm |
Bracing | 25x2mm |
Connection type | Plated bolt screw |
Self weight |
125kg |
Transporation volume | 1.48m3 |
HS code |
7610900000 |
Capacity |
3 Suspension Points: UDL 97kg/m; CLP 421kg |
4 Suspension Points: UDL 166kg/m; CLP 587kg |
|
6 Suspension Points: UDL 321kg/m; CLP 830kg |
|
8 Suspension Points: UDL 470kg/m; CLP 990kg |
|
10 Suspension Points: UDL 623kg/m; CLP 1082kg |
Arc Lengths:
Diameter(m) | Arc |
1.5 m | 2 x 180 degree arcs |
2 m | 2 x 180 degree arcs |
3 m | 4 x 90 degree arcs |
4 m | 4 x 90 degree arcs |
5 m | 8 x 45 degree arcs |
6 m | 8 x 45 degree arcs |
Other length can be custom on request.
