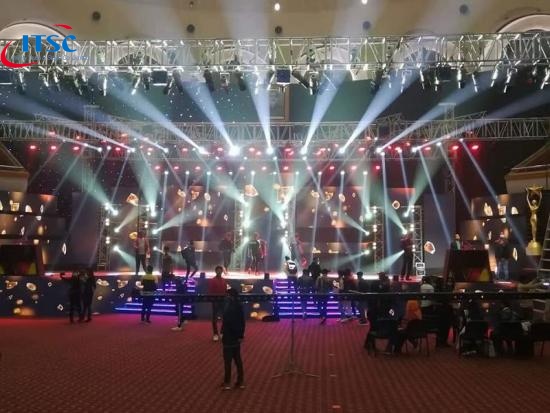

Graphical Aluminium Stage Box Truss Roof Structure :
This Aluminium Truss Rental Structure is based on standard Truss ITSC-CS52 as beam and ITSC-CS39 as pillars. It is economic packages. It is modular and versatile. It is quick and easy to assemble, saving building time and labour cost. You can put the ITSC-CS39 into ITSC-CS52 to save the transportation volume and costs.Besides, you can also extend it to be Pyramid roof, Arc Roof,ect.
Features:
- Just install the system with your standard ITSC-CS52 and ITSC-CS39 in stock.
- Spigot connection make your installation much easier and quicker.
- Coating power to be black is available.
- TUV and SGS certificate.
Specification:
Item | 18m Graphical flat truss stage roof structure |
Towers | 390x390mm Spigot truss |
Main grid | 520x520mm medium duty truss |
Dimensions | 18x9m |
Loading capacity | 3500kg |
Total weight | 1250kg |
Transporation volume |
23m3 |
Max. wind speed | 26m/s |
HS code |
7610900000 |
Application:
- Product presentations.
- Theatre shows, musicals and operas.
- Concerts, festivals and fairgrounds.
- Exhibitions and trade shows.
- Celebrations and parties.
- Conventions and large-scale meetings.
- Event planner or production companies.
- Wedding parties.
