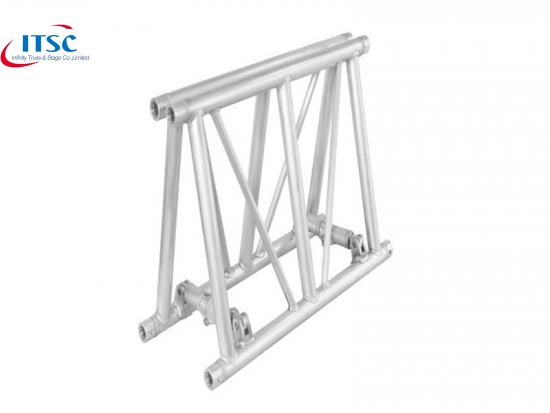

580x1000mm High Quality Heavy Duty Collapsible Truss Equipment :
This High Quality Collapsible Truss is custom on special dimension request. It can be collapsible for storage and transportation to save space.
Features:
- 4- point chord.
- TUV and SGS approved.
- OEM and ODM acceptable.
- Space-saving after folding.
- High loading capacity.
Specification:
Item | 580x1000mm Aluminium Collaapsible Truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Main tubes | 50 x 4 mm |
Sub-Main tube | 50 x 3 mm |
Braces | 30 x 2 mm |
Connection type | Conical couple system |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
50 cm | 16.5 kg |
100 cm | 32 kg |
200 cm | 47.5kg |
300 cm | 62 kg |
Other length can be custom on request.
Application:
This Collapsible Triangle Truss is widely used for big concert stage hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
