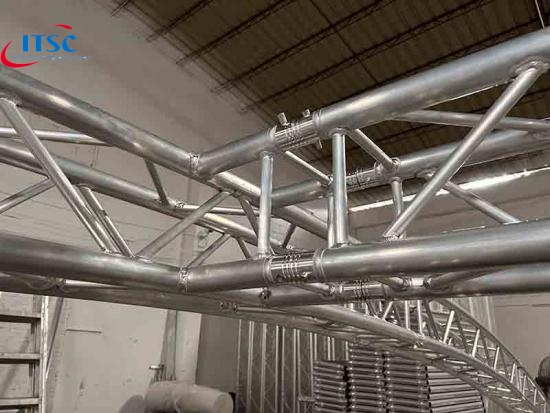

290x290mm Arch Box Truss Beam One Way Corner for Arch Roof System:
This DIY Arc Box Truss Beam with One Way Corner Connection is one of the custom Truss Box Corners for the ITSC-CS29 curved roof arc truss. It offers optimum flexibility to complete your special truss structures requirements. It is widely used for advertising events.

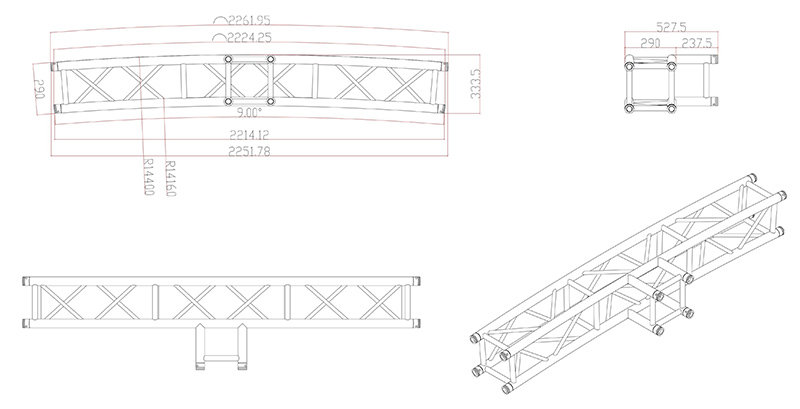

The truss corner detail profile by ITSCtruss.
Features:
- Lght weight and quick to install.
- Modular and fotproof assembly.
- Powder coating or anodizing to be any color on request.
- Special design for architecture structure.
- TUV and SGS certificates.
Specification:
Item | 290x290mm custom 1 way truss corner for curved truss roof arch beam connection |
Material | Aluminum Alloy 6061-T 6 / 6082-T 6 |
Types | Square Truss |
Main tubes | 50 x 3 mm |
Braces | 25 x 2 mm |
Connection type | Conical couple system |
Dimensions | 300x500x2300mm |
Self-weight | 17.5kg |
Transportation volume | 0.7m3 |
HS code |
7610900000 |

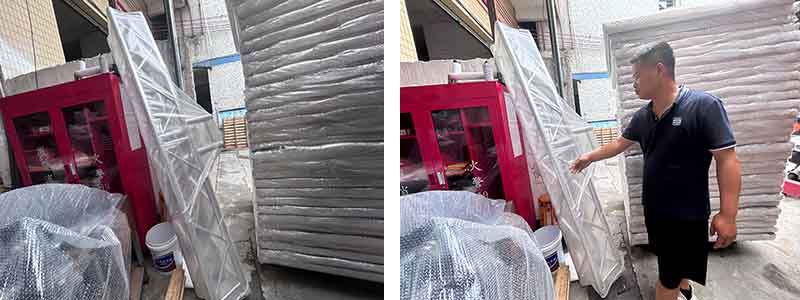

Packing & Loading:
Truss corner package and loading to Liberia and Guyana.
