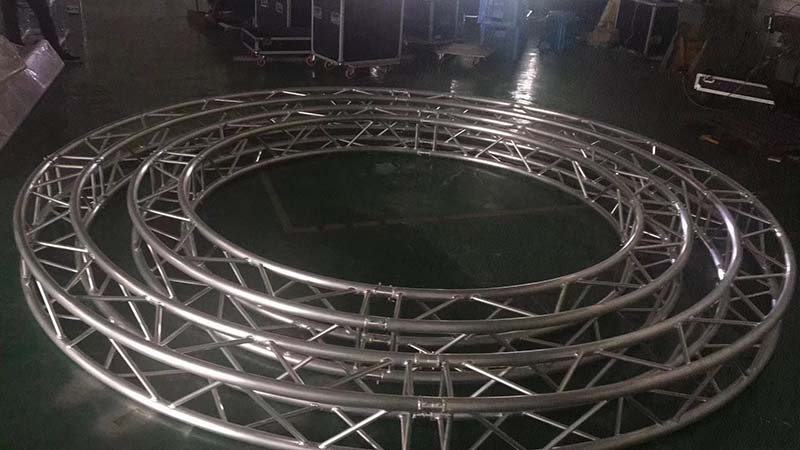

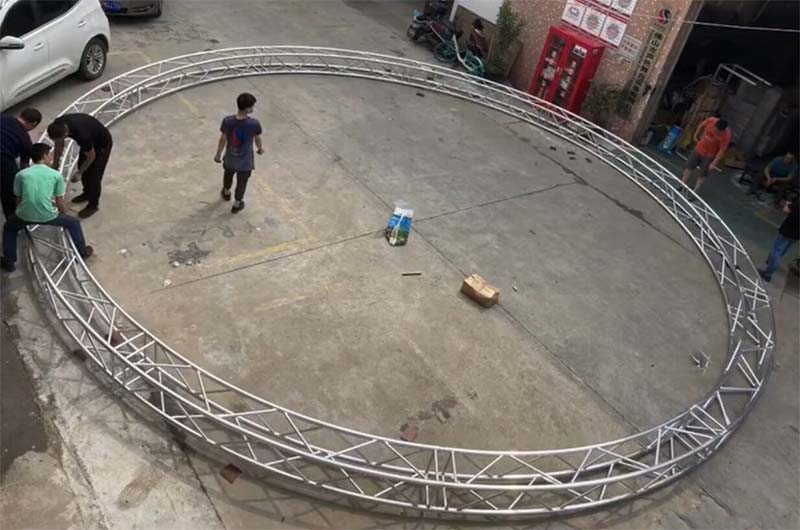

Aluminium Circular Space Truss with ITSC-CS29 Box Trussing Segment:
This Circular Space Truss is configurated with ITSC-CS29 box truss with main tube 50x2mm and bracing 25x2mm. It is usualy hung with 3/4/5/6/8/10 suspension points, and its loading capacity as shown in the specification form.
Features:

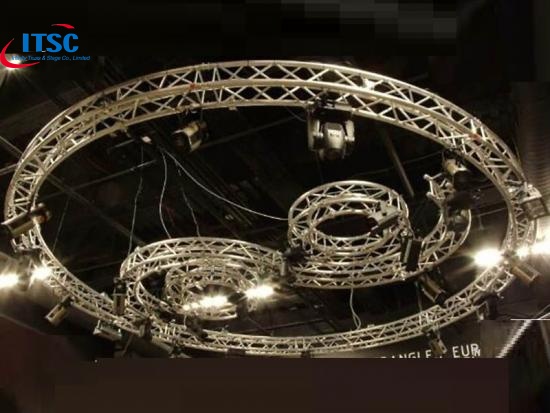

- Used for ceiling decoration or combined with other truss systems for stage entertainment.
- Quick to install with conical coupler system.
- TUV and SGS certificates.
- Any diameter circle truss can be custom.
Specification:
Item | 24ft dia circular truss with 290mm box truss rigging |
Dia | 24ft |
Main rigging | ITSC-CS29 box truss |
Selfweight | 185kg |
Transportation volume | 4.1m3 |
HS Code |
7610900000 |
Capacity | 3 suspension points: UDL 75kg/m, CLP 383kg |
4 suspension points: UDL 139kg/m, CLP 540kg |
|
6 suspension points: UDL 270kg/m, CLP 790kg |
|
8 suspension points: UDL 404g/m, CLP 950kg |
|
10 suspension points: UDL 534kg/m, CLP 1055kg |
