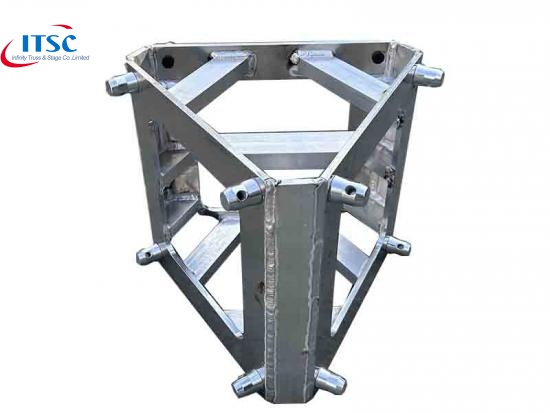

390x390mm 3 Way 60 degrees Box Truss Angle:
This 3 Way Angle is custom with 60 degrees for aerial truss rigging for outdoor events.
Specification:
Item | 3 Way Angles with 60 degrees for 390x390mm box truss |
Material | Aluminum Alloy 6061-T 6 / 6082-T 6 |
Types | Square Truss corner |
Main tubes | 50 x 3 mm |
Braces | 25 x 2 mm |
Connection type | Spigoted pin connection |
Dimensions | 390x390x390mm |
Selfweight | 8.2kg |
Transportation Volume | 0.08m3 |
HS code |
7610900000 |

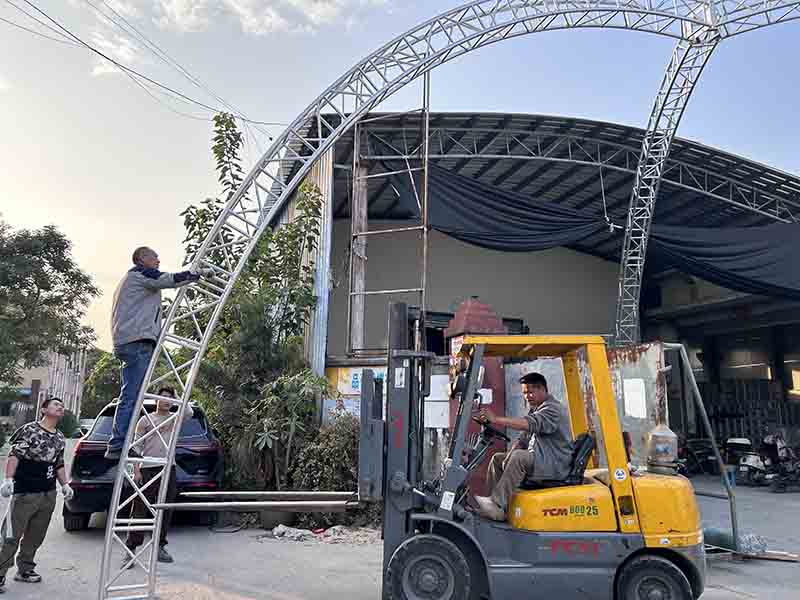

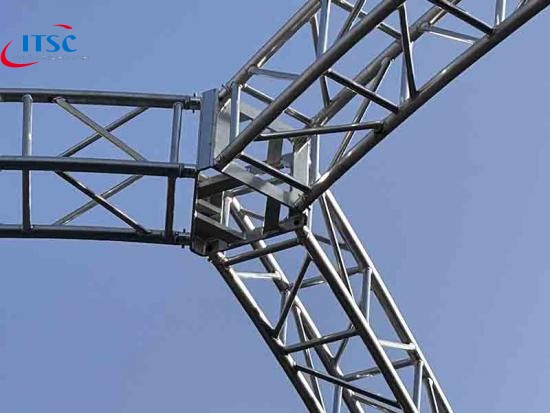

This 3 Way Truss Corner is connected with the curved trusses for aerial rigging system.

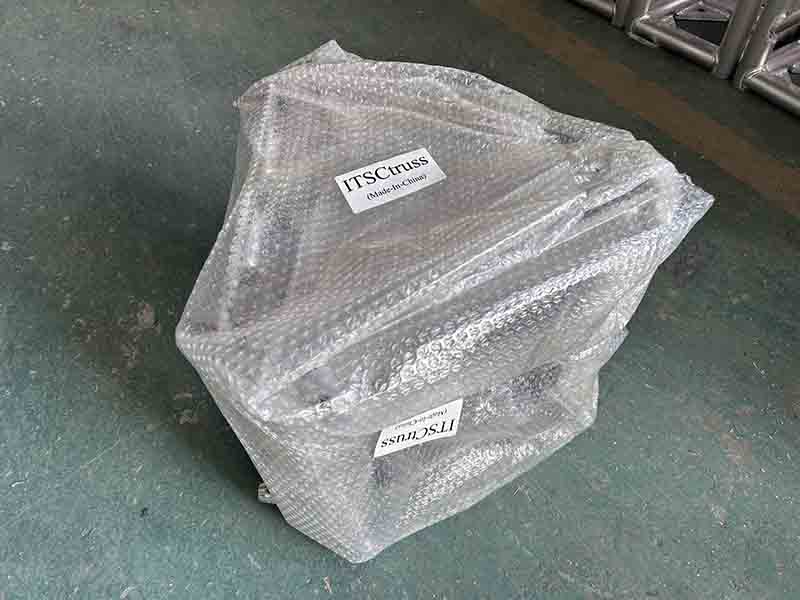

This Corner is packed with air bubble and ready to ship to USA.
