4x4 Aluminum Portable Modular Stage Platform

This Aluminum Portable Stage is made of Alu-Alloy 6061 T6. It is lightweight but strong with 750 kg / m2 capacity, Waterproof for Outdoor Events , DIY building only by one technician! Popular in Rental for Concerts and Events.
  • Item NO.:

    ITSC-S01
  • Payment:

    30-50% T/T in advance
  • Product Origin:

    Guangzhou
  • Color:

    Silver/Black/Red/Golden
  • Shipping Port:

    Guangzhou/Shenzhen
  • Lead Time:

    2-15 working days
  • Product Detail


4x4 Aluminum Portable Modular Stage:


This metal stage platform is of great value and perfect durable decks for hire business, schools, wedding, concerts, dancing, catwalk, Djs, night clubs, musice, and many other indoor or outdoor events. It is constructed with aluminium frame and 18mm birch tree fiber plywood board covered with a phenolic resin so that the top is protected with a smooth anti-humidity waterproof.


We have many Portable Modular Stage Platforms for Sale

4x4 stage platform cheap

Many clients come to visit and buy our 4x8 Stage Platform and lighting trusses, and they are very happy with our quality and service. Most of them are from Nigeria, Kenya, India, Malaysia, UK,  Thailand, Columbia, Qatar, USA, ect.

4x4 stage platform clients


With exntending tubes, its height can be adjustable in several heights according to events situation. Besides, the braces are connected to the legs with a standard 4-way corner by means of a single pin,which makes it much easy to install the whole stage systems only with one technician!


4x4 Stage platform

Due to the Portable Stage Decks are firmly fixed inside the frame glooves, and every two decks sharing the same frame, the whole Portable Stage Platform System will not topple over and the whole system can work as ballast system for the Truss Roof System.


Buy stage platform


Features:


  1. Waterproof and anti-slip for outdoor and indoor concert events
  2. Aluminum frame and lightweight for mobile use
  3. DIY  fast assembling, no any tools
  4. Height adjustable for different situation
  5. Interconnected framework acting as ballast systems for truss roof constructions
  6. Factory price only

ITSCtruss always have large quantity of this Portable Stage Floors in store for quick delivery on request.


portable stage in store


Specification:


Material Aluminum Alloy 6061-T 6
Dimensions 4 x 4 ft(1.22 x 1.22 m )
Types Square
Main tubes 50 x 3 mm
Stage Topping 18 mm birch tree fiber plywood with a phenolic resin, anti-slip, waterproof
Self-weight 49 kg /pcs
Volume
0.2 m3/pcs
Capacity

750 kg /m2

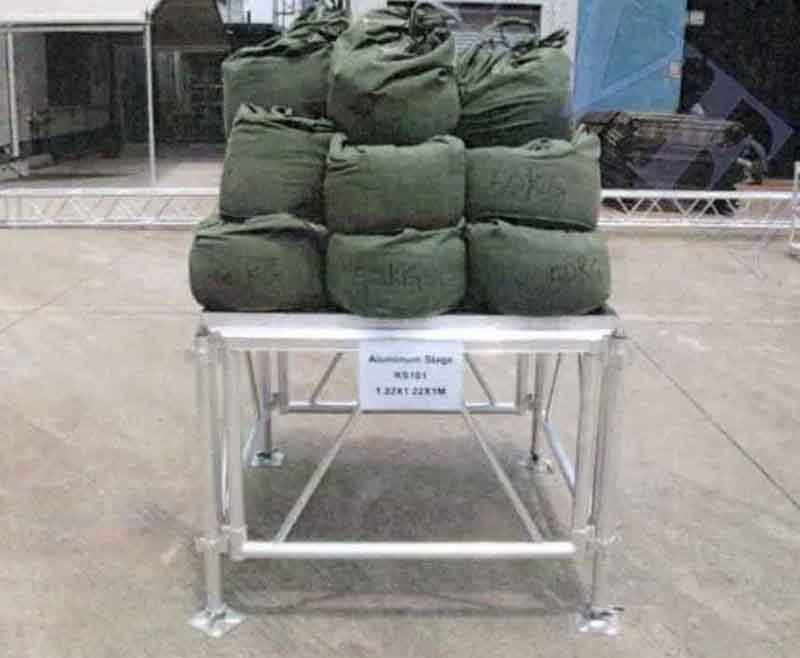

How much weight can a 4x4 platform stage hold?


Its capacity is around 1125kg in total.


Its canpacity can be 750kg/m2, strong enough even for carrying cars!


It means, a standard 4x4 platform stage can hold 1125 kg weight through the whole surface, and the pillars, side pannels, as well as the toppings are must be designed and produced to be capatable of supporting this weight. The heigher platform, the longer pillars and side pannels offered to keep stable and safe at the right height level.


4x4 stage platform for sale


Parts:

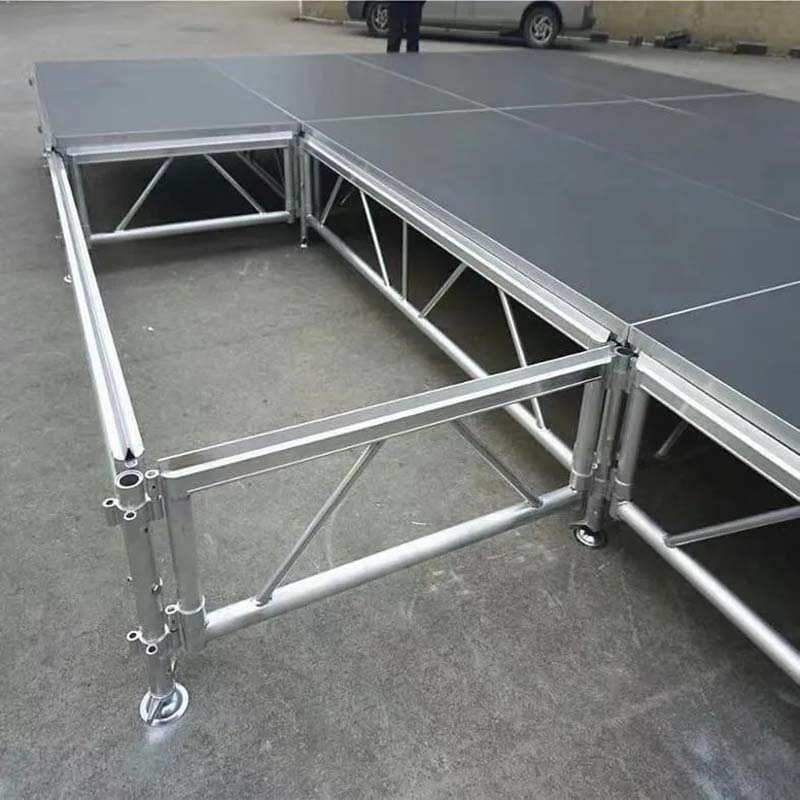

The Aluminium Portable Stages are assembled with brace, boards, legs, frame, and base.



aluminum stage deck


Topping options:


The colour of the standard topping is brown plywood, black plywood, red plywood, and acrylic. You can choose any topping on request.

Constructed with alumnium frame and 18mm birch tree fiber plywood topping board, it is covered with a phenolic resin to protect them. After that, the top is protected with a smooth anti-humidity layer and it is watetproof.




Aluminium stage frame

How do you build 4x4 Portable Stage Platform?


  1. Lay  the 4 adjustable jack on the floor
  2. Put the 4 legs in the screw of the jacks
  3. Connect every 2 pillars with the side panels
  4. Put the stage topping inside the glooves formed by the 4 side panels
  5. Adjust the the whole stage until fixed without any loosing space then finished

4x4 stage platform for sale in kenya



Application:


This stage is commonly combined with Truss Stage Roof for temporary indoor and outdoor concerts events. if you install them correctly, the whole Potable Stage Systems can work as ballast for the roof.


Aluminium stage platform


Problems:


Its maximum height is suggested to be within 6.5 ft (2 m ). If you are supposed to install portable staging system to be more than that height, we recommend you our Stage Truss Systems  or   4x4 Steel Ringlock Scaffolding Stage Platform
