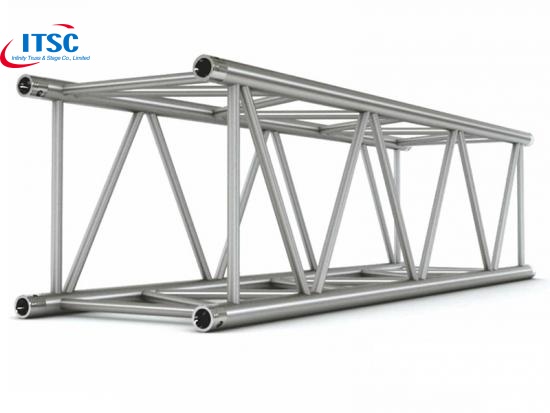

Buy 520mm Aluminium Grid Box Truss Beam Bridge Block;
This 520mm Grid Box Truss Lighting is developed from the standard Grid Box Truss Model ITSC-CS52. It features with main tubes 50x3mm and bracing 30x2mm only. It is strengthened to be stage roof masks to offer heavier vertical forces from the top beam trusses.
Features:
- 4- point chord.
- TUV and SGS approved.
- OEM and ODM acceptable.
- Conical coupler system for quick and easy installation.
Specification:
| Item | 520mm Grid Box Truss Frame |
| Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
| Types | Square |
| Main tubes | 50 x 3 mm |
| Sub-Main tube | 30 x 2 mm |
| Braces | 25 x 2 mm |
| Connection type | Conical couple system |
| HS code |
7610900000 |
Length and Weight:
| Length | Weight |
| 50 cm | 6.15 kg |
| 100 cm | 10.80 kg |
| 150 cm | 15.45 kg |
| 200 cm | 20.1 kg |
| 250 cm | 24.27 kg |
| 300 cm | 29.40 kg |
Other length can be custom on request.
Application:

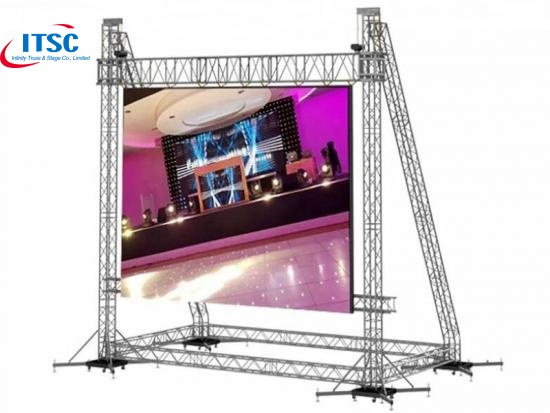

This Grid Box Truss Forte is widely used for big concert stage hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
