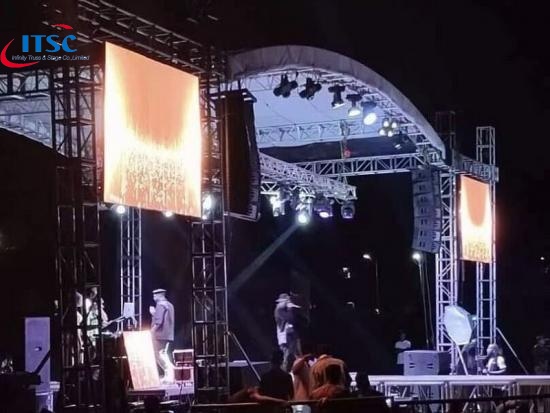

Outdoor Curved Box Trusses Stage Roof System :
The Curved Box Trusses Roof is a fixed tower-based structure with ITSC-CS29 Square Truss Segments. Different demensions are customed by simply changing the arches. PVC Cover on the top and sizes are optional.
Features:
- Just install the system with your standard ITSC-CS29 straignt box truss and the curved box truss segments.
- Aluminium lightweight Stage Lighting truss portable for exhibitions and trade shows
- TUV and SGS certificates
- Easy and quick to install and dismantle
Specification:
Item | 30ft Metal curved box trusses stage roof |
Towers | 290x290mm spigot truss |
Main grid | 290x290mm lightweight truss and special angles |
Dimensions | 30x30x20ft |
Loading capacity | 3200kg |
Total weight | 1070 kg |
Transporation volume |
18m3 |
Max. wiind speed | 26m/s |
HS code |
7610900000 |
Application:
- Product presentations
- Theatre shows, musicals and operas
- Concerts, festivals and fairgrounds
- Exhibitions and trade shows
- Celebrations and parties
- Conventions and large-scale meetings
- billboard advertising, commecial advertising, event advertising, entertaiment, ect.
