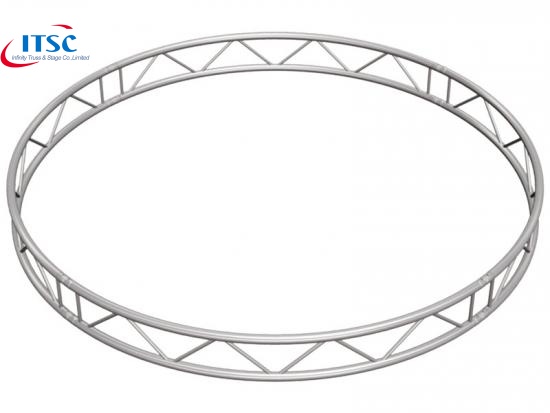

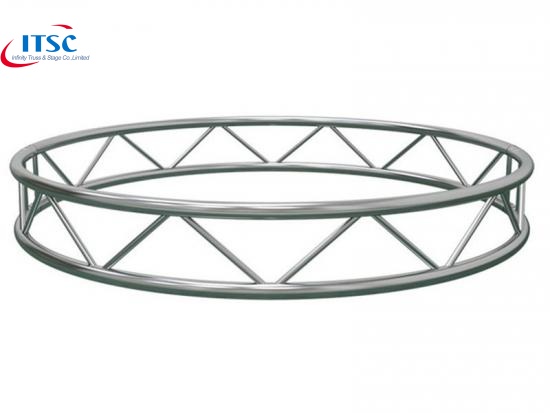

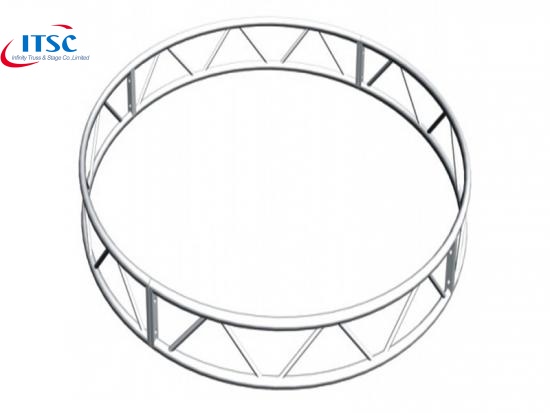

Alumimum Vertical Single Ladder Circular Truss:
The Stage Lights Circular Truss Vertical is configuarted with only the Flat Ladder Truss ITSC-CL29 and simply connected with the connical coupler connectors. It is stomized according to some JD truss kits requirements.
Features:
- Mini and simple
- TUV and SGS approved
- Fool proof assemble
- Any diameter customized
Specification:
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Ladder Truss circle |
Main tubes | 50 x 2 mm |
Bracing | 20x2mm |
Connection type | Conical couple system |
HS code |
7610900000 |
Arc Lengths:
Diameter(m) | Arc |
1.5 m | 2 x 180 degree arcs |
2 m | 2 x 180 degree arcs |
3 m | 4 x 90 degree arcs |
4 m | 4 x 90 degree arcs |
5 m | 8 x 45 degree arcs |
Other length can be custom on request.
