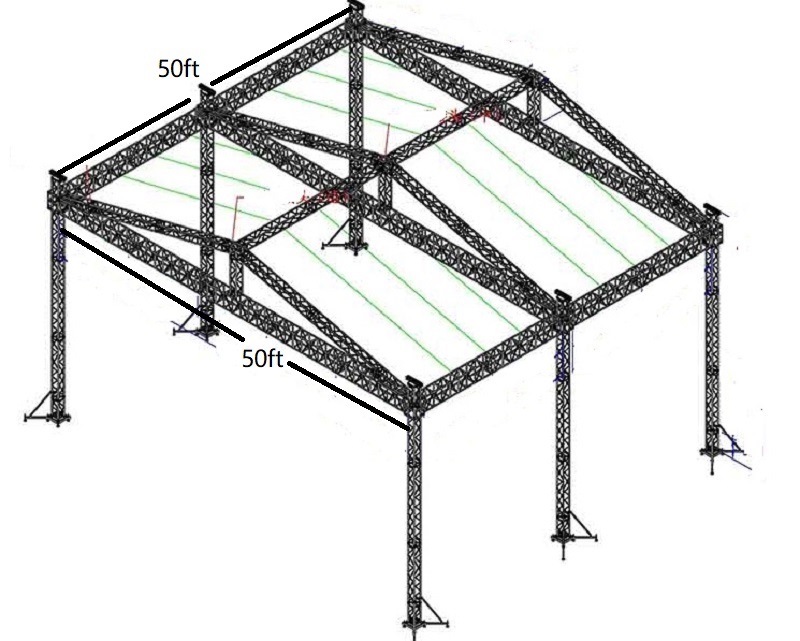

50 Foot Metal Triangular Roof Stage Trusses structure for concerts:

This Metal Stage Truss Structure is configurated with ITSC-BS40 with 6 strengthened towers ground supports for Outdoor Concerts events. It is 50x50x26ft in dimensions, and It offers flexible possibilites for creating other roof shapes such as: curved roof, dome roof, and tunnel roofs.




Features:

- Just install the system with your standard ITSC-BS40 in stock.
 - Bolt connection makes less cost.
 - Coating power to be black is available.
 - Featuring with stage systems as ballast system and the box truss systems under the roof to hang more lighting.
 - TUV and SGS certificates.




Specification:

| Towers | 400x400mm bolt truss |
| Main grid | 400x400mm box truss |
| Dimensions | 50x50x26ft |
| Loading capacity | Approx.3510kg |
| Total weight | Approx.1350kg |
| Transporation volume |
				Approx. 23m3 |

| Max. wind speed | Approx. 28m/s |

Application:

- Theatre shows.
 - musicals and operas.
 - festivals and fairgrounds.
 - Exhibitions and trade shows.
 - Celebrations.
 - Parties.
 - Conventions.
 - large-scale meetings.
 - Studios.
 - Churches.
 - Wedding.
 - Sport clubs.
 - DJ events.
 - Roadshows.
 - Concerts.
