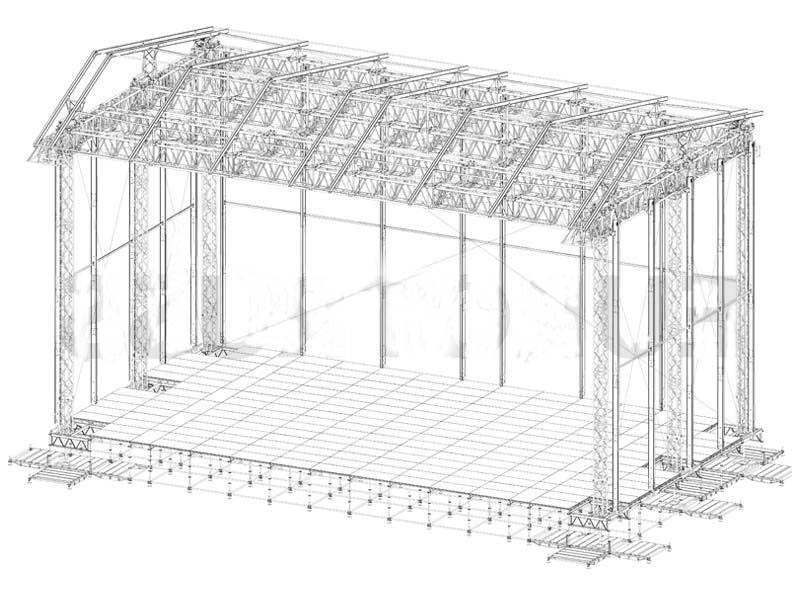

26x15m Stage Roof Truss Triangular Canopy Structure System:
This Stage Roof is extended from Box Truss 26x15m, and equiped with triangular stage roof. It is standard packages. It is modular and versatile. It is quick and easy to assemble, saving building time and labour cost.
Features:
- Just install the system with your standard ITSC-CS14095 and ITSC-CS52 in stock.
- Spigot connection make your installation much easier and quicker.
- Coating power to be black is available.
- Cheaper price compared with curved roof and dome roof.
- TUV and SGS certificates.
Specification:
Item | Heavy Duty Triangular Stage Roof for biggest concerts |
Towers | 520x520mm Box truss |
Main grid | 140x760mm Heavy duty truss |
Dimensions | 26x15x18.6m |
Total weight |
15,470kg |
Loading capacity |
30,000kg |
Transporation volume |
165m3 |
Max. wind speed | 28m/s |

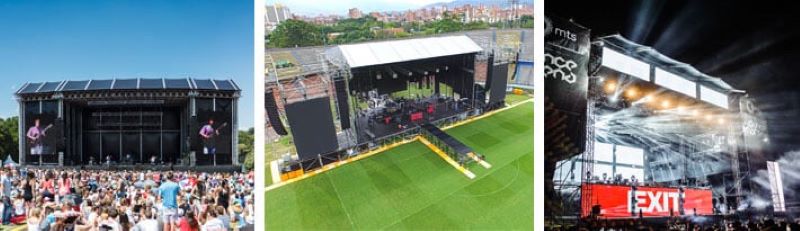

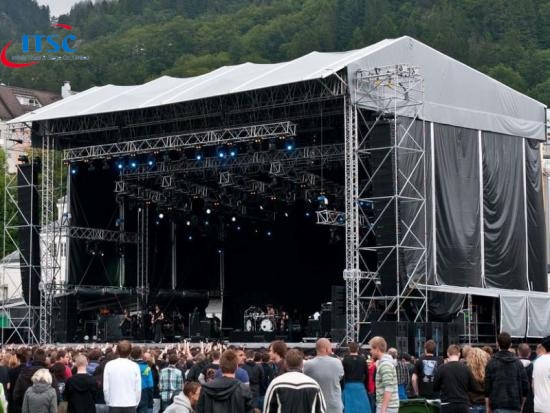

Application:
- Concerts, festivals and fairgrounds.
- Exhibitioins and trade shows.
- Celebrations and parties.
- Conventions and larg-scale meetings.
- Event management or wedding parties.
- Product presentations.
- Theatre shows, musicals and operas.
