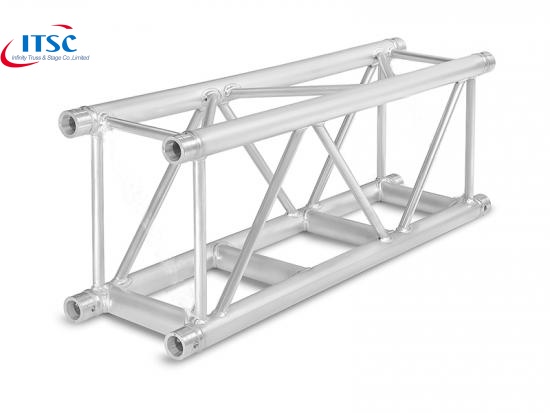

300 x 400 mm Triangular Box Morphon Lighting Trussing :
This Modular Rectangular Truss 300 x 400mm offers a lightweight and it is portable for all dj lighting. And it can be extended to 16m span with 450kg capacity. So it is usually applied as i beam truss in all medium Cheap Roof Trusses.
Features:
- 4- point nodding
- TUV and SGS approved
- Free design and technology support
- OEM and ODM acceptable
- Powder coating and anodizing to any color without any peeling
Specification:
| Item | 300x400mm rectangular box truss Pined |
| Material | Aluminum Alloy 6082-T 6 |
| Types | Rectangle |
| Main tubes | 50 x 3 mm |
| Sub-Main tube | 30 x 2 mm |
| Braces | 25 x 2 mm |
| Dimensions | 300x400mm |
| Connection type | conical coupler Connection |
| HS code |
7610900000 |
Length and Weight:
| Length | Weight |
| 50 cm | 5.1 kg |
| 100 cm | 8.2kg |
| 150 cm | 13.25 kg |
| 200 cm | 14.75 kg |
| 250 cm | 15.7 kg |
| 300 cm | 21.5 kg |
Other length can be custom on request.

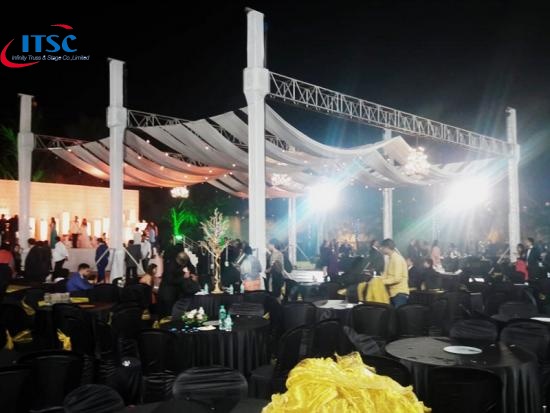

Application:
The Medium-Duty Rectangular Truss is widely used for Truss Beam, Roof Truss Support Beam, Truss Beam Bridge, I Beam Roof Trusses.
