8m Wholesale Outdoor Event Aluminum Tunnel Roof Truss System:
This Tunnel Roof Truss Stage is rigged with ITSC-BS30. It is standard packages. It is modular and versatile. With bolt connection, it is Cheap at price. Besides, its depth can be extended any length as you need.

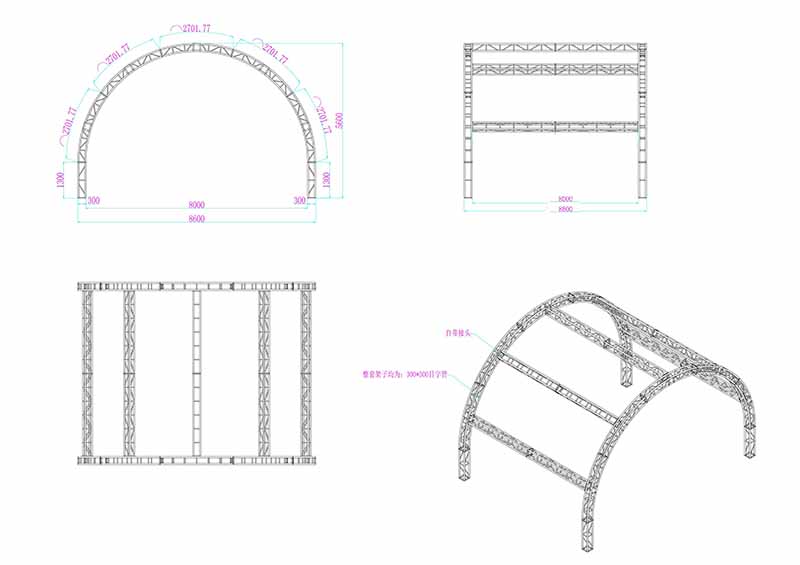

Curved Roof Truss design before production by ITSCtruss.
Features:
- Just install the system with your standard ITSC-BS30 in stock.
- Bolt connection make your project cheaper.
- Coating power to be black is available.
- TUV and SGS certificates.
Specification:
Main grid | 300x300mm square truss |
Dimensions | 8x8m |
Loading capacity | 63-475kg/m |
Total weight | Approx.1480kg |
Transportation volume |
8m3 |
Max. wind speed | 28m/s |
HS code |
761090000 |
Testing:

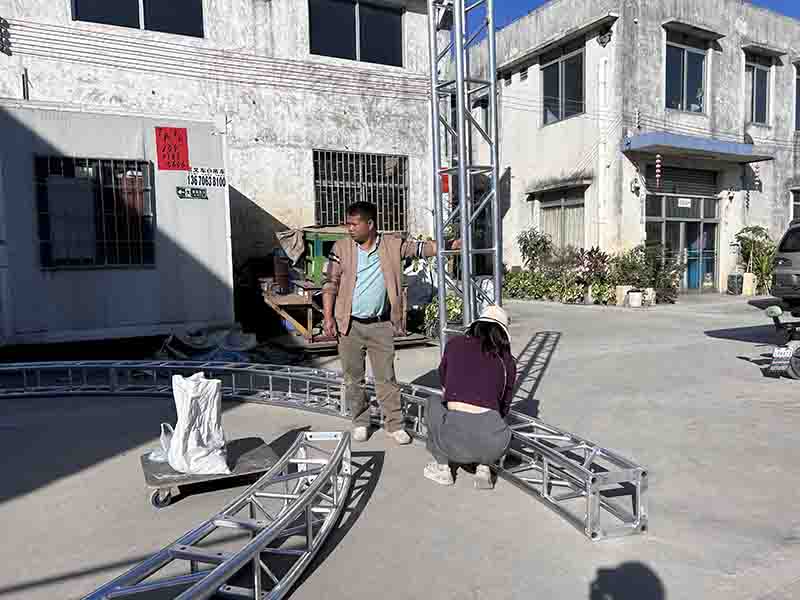

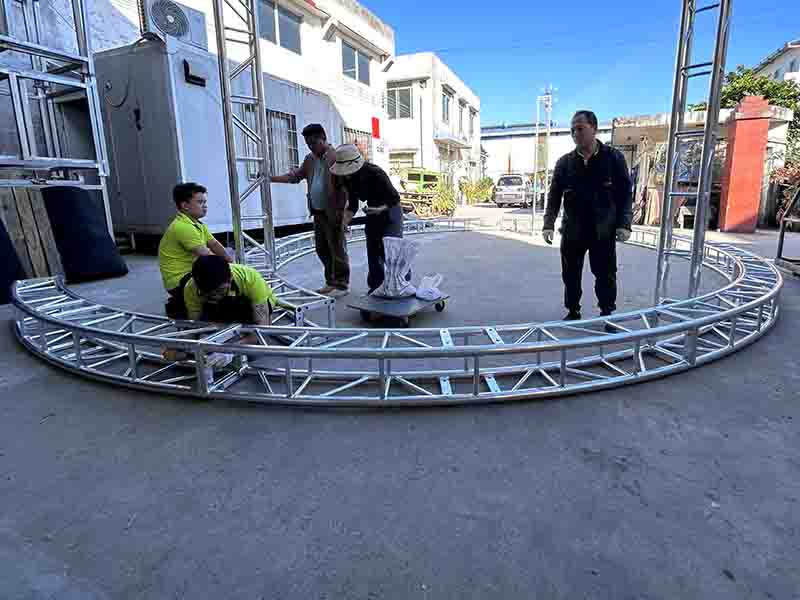

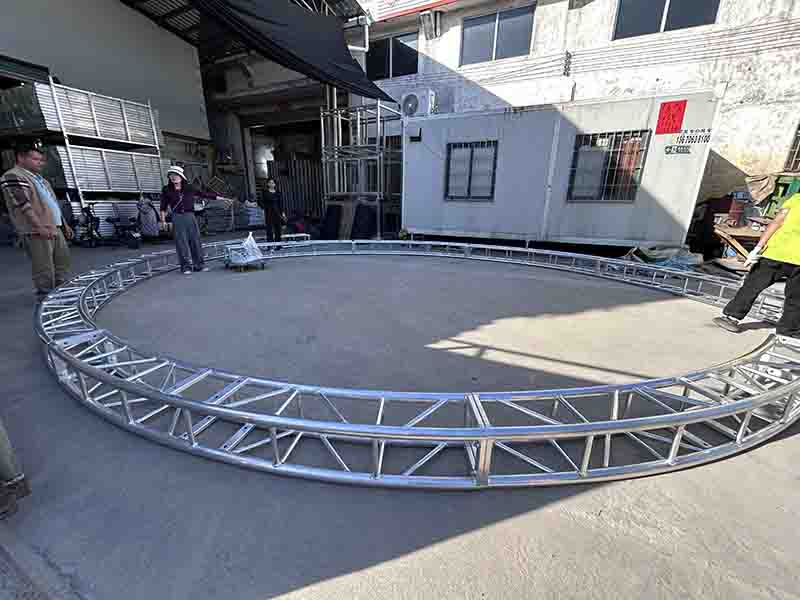

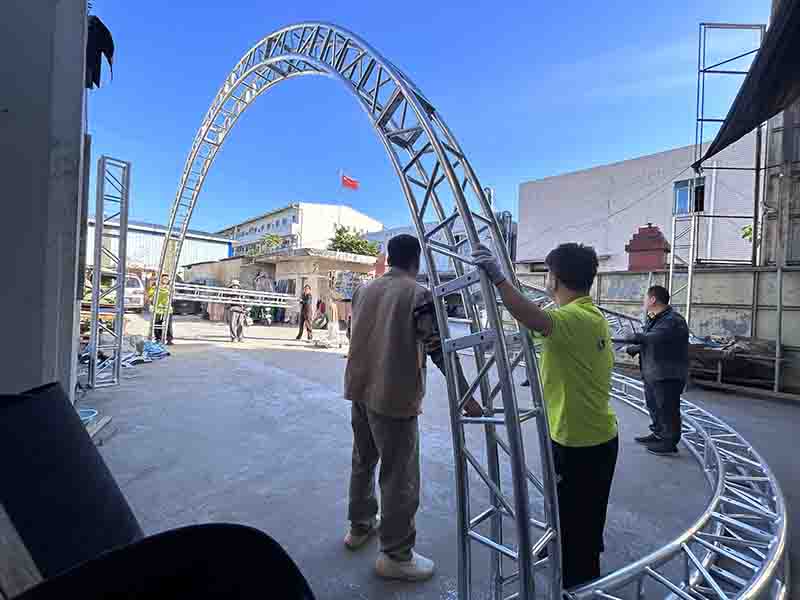

Step 1, Connect all the arched truss segments on the floor.
Step 2, Connect all the straingt beams truss to the arched truss segments.

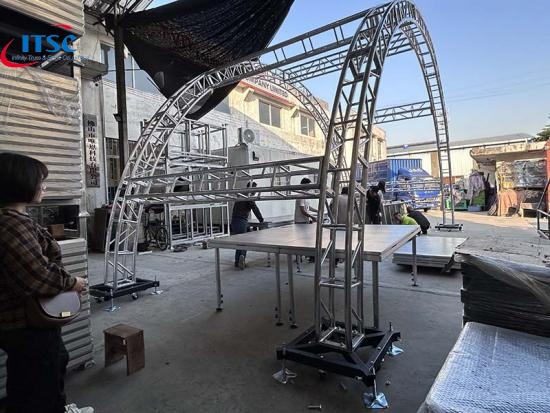

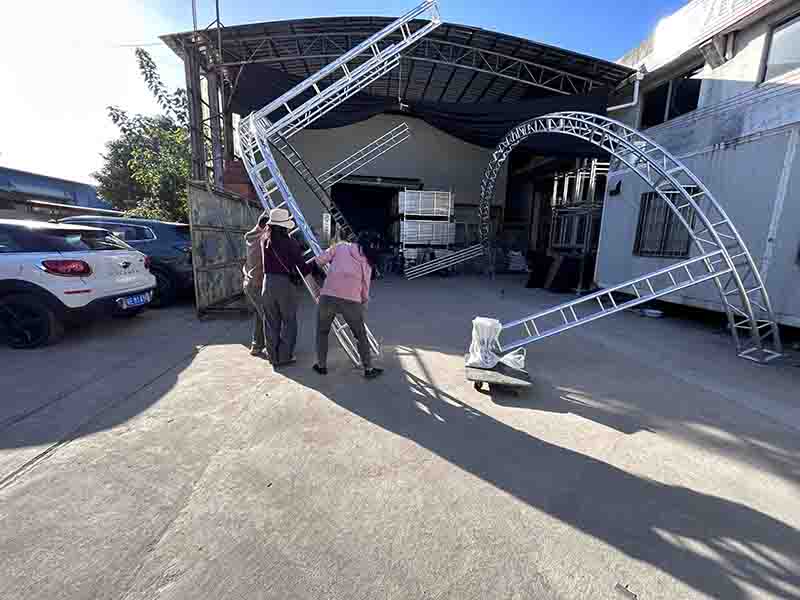

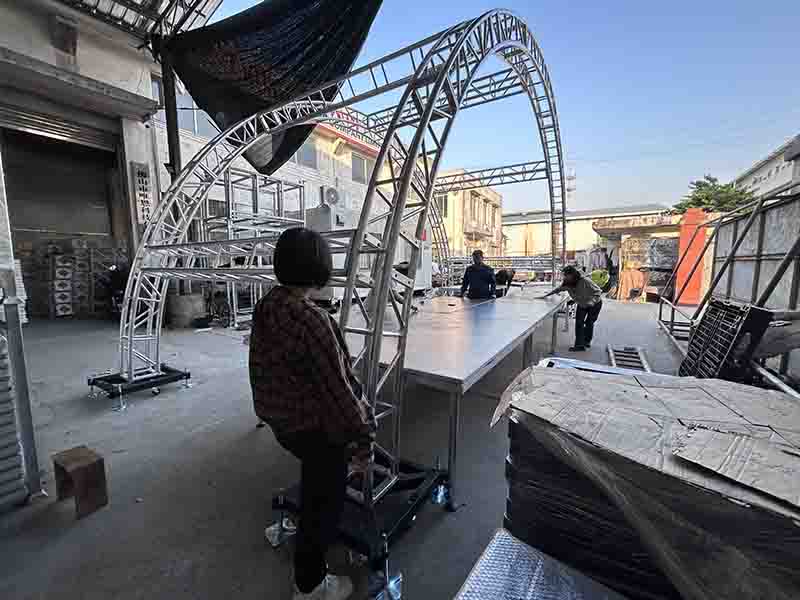

Step 3, Push up the connected arched truss segments.

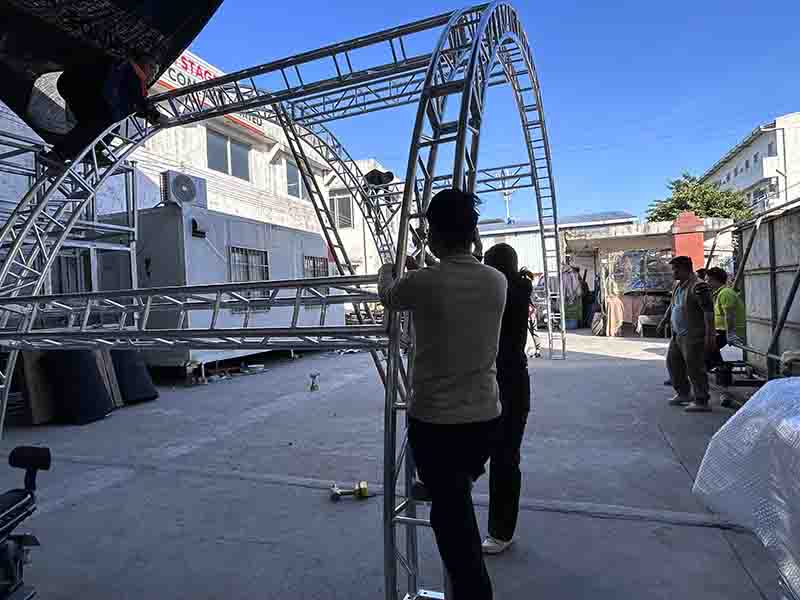

Step 4, Combined the 2 connected arched truss segments together with the strainght trusses beams.
Step 5, Connect all the truss beams together between the two arched trusses.

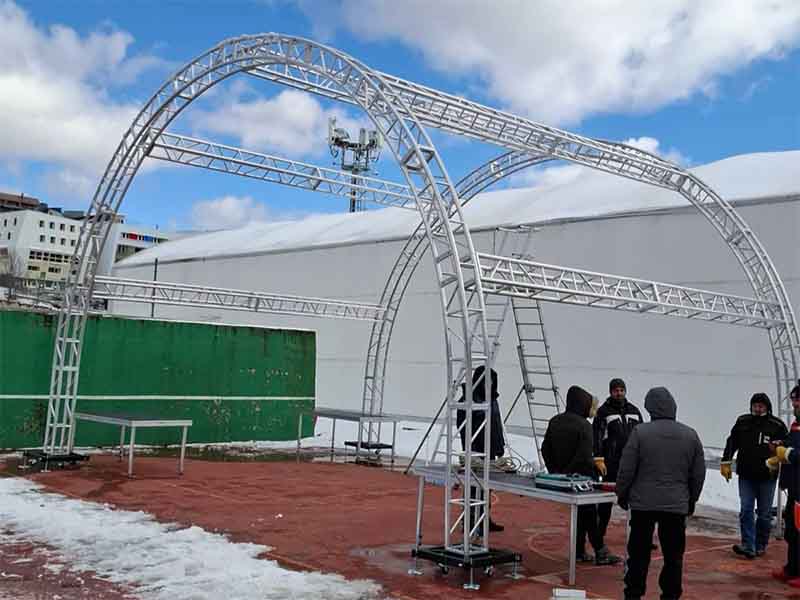

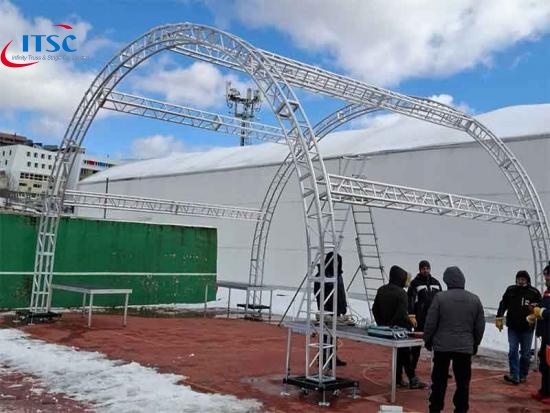

Finaly, the whole stage truss tunnel roof is set up and all is working well.
Application:
- Product presentations.
- Theatre shows, musicals and operas.
- Concerts, festivals and fairgrounds.
- Exhibitioins and trade shows.
- Celebrations and parties.
- Conventions and larg-scale meetings.
