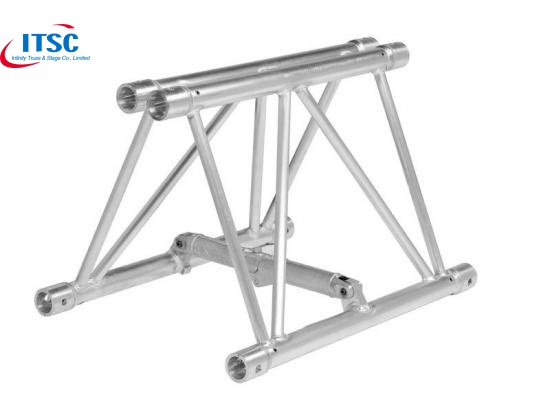

520x760mm Aluminum Heavy Duty Foldiing Truss System:
This Heavy Duty Folding Truss is adapted for construction in one level. it is specially designed for mobile event service. This truss offers high load capacity and uses minimum space. By folding the truss, it is possible to transport it in a simple way.
Features:
- 4- point chord.
- TUV and SGS approved.
- OEM and ODM acceptable.
- Space-saving after folding.
- High loading capacity.
Specification:
Item | 520x760mm triangle folding truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Main tubes | 50 x 4 mm |
Sub-Main tube | 50 x 3 mm |
Braces | 25 x 2 mm |
Connection type | Conical couple system |
Length and Weight:
Length | Weight |
60 cm | 11 kg |
80 cm | 16 kg |
160 cm | 25 kg |
250 cm | 31.50 kg |
320 cm | 48 kg |
Other length can be custom on request.
Application:
This Global Folding Truss is widely used for big concert stage hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
