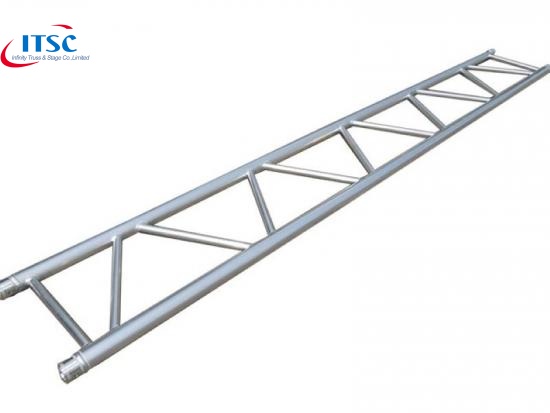

220mm Ladder Truss Kit Beam For Sale :
This Ladder Truss Kit Beam features cheap price. and it can be assembled in vertical or horizontal position .Its Centre Point Load Capacity is 250kg at 6m span. It can be straight, curved and circular and usually adapted for global ladder truss roof system at cheaper price.
Features:
- Cheaper price compared with the spigot one.
- Modular and versatile for roof reinforcement and hire.
- Powder coating or anodizing to be any color on request.
- Free design by us.
- Lightweight for ladder framing between trusses or ending truss ladder construction.
Specification:
Item | 30x220mm ladder truss kit beam |
Material | Aluminum Alloy 6061-T 6 / 6082-T 6 |
Types | Ladder |
Main tubes | 30 x 2 mm |
Braces | 12 x 2 mm |
Connection type | spigoted |
Length and Weight:
Length | Weight |
50 cm | 1.55 kg |
100 cm | 2.0 kg |
150 cm | 2.55 kg |
200 cm | 2.9 kg |
250 cm | 3.50 kg |
300 cm | 4.0 kg |
Other length can be custom on request.
Application:
This Ladder Truss Kit Beam Roof is commonly applied to install the truss roof systems to support the whole pyramid roof, curved roof or arc roofs.
