Buying Lightweight Apex Up Circular Truss:

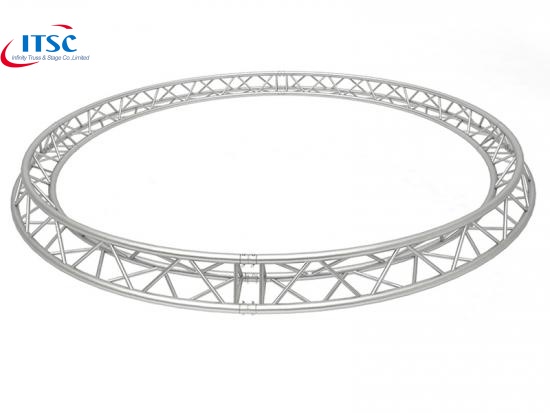

The Apex up Triangle Truss Circle is configuarted with the Spigot Triangular Truss ITSC-CT29 and simply connected with the conical coupler connectors. It is customized according to some exhibition booths requirements.
Features:
- Lightweight and portable
- TUV and SGS approved
- Fool proof assemble
- Any diameter customized
Specification:
| Item | 8ft Apex Up Circular truss with 290x290mm tri truss segments |
| Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
| Types | Triangular Truss circle |
| Main tubes | 50 x 2 mm |
| Bracing | 20x2mm |
| Connection type | Conical couple system |
| Selfweight | 45kg |
| Transporation volume | 0.61m3 |
| HS code |
7610900000 |
|
Capacity |
3 Suspension Points: UDL 160kg/m; CLP 350kg |
|
4 Suspension Points: UDL 210kg/m; CLP 451kg |
|
|
6 Suspension Points: UDL 450kg/m; CLP 702kg |
|
|
8 Suspension Points: UDL 610kg/m; CLP 830kg |
|
|
10 Suspension Points: UDL 820kg/m; CLP 930kg |
Arc Lengths:
| Diameter(m) | Arc |
| 1.5 m | 2 x 180 degree arcs |
| 2 m | 2 x 180 degree arcs |
| 3 m | 4 x 90 degree arcs |
| 4 m | 4 x 90 degree arcs |
| 5 m | 8 x 45 degree arcs |
| 6 m | 8 x 45 degree arcs |
Other length can be custom on request.
