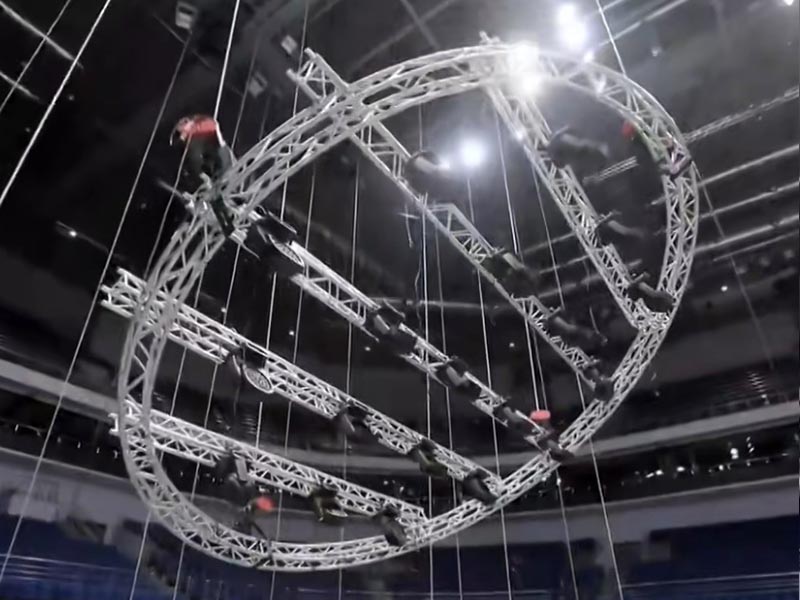

Large Dia Global Circular Trusses For Event Stage:

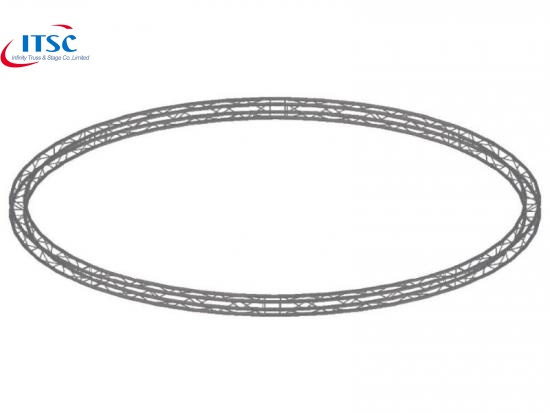

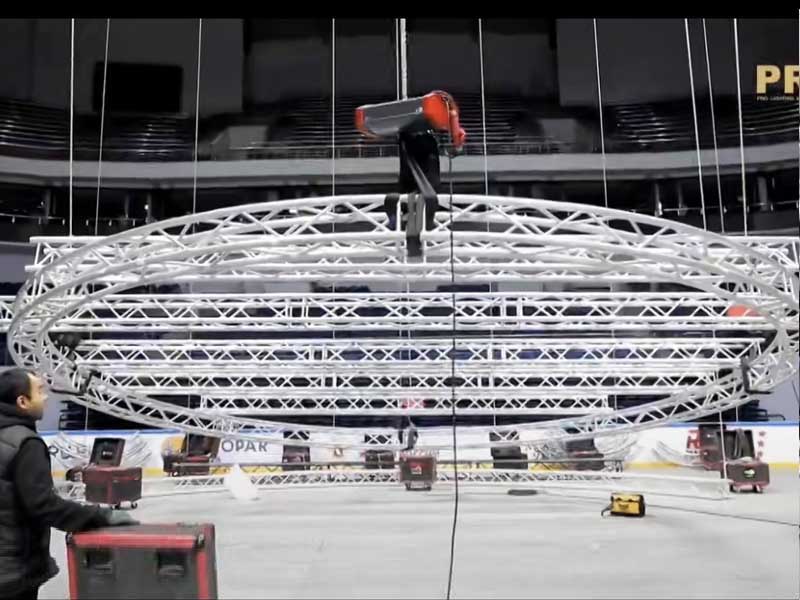

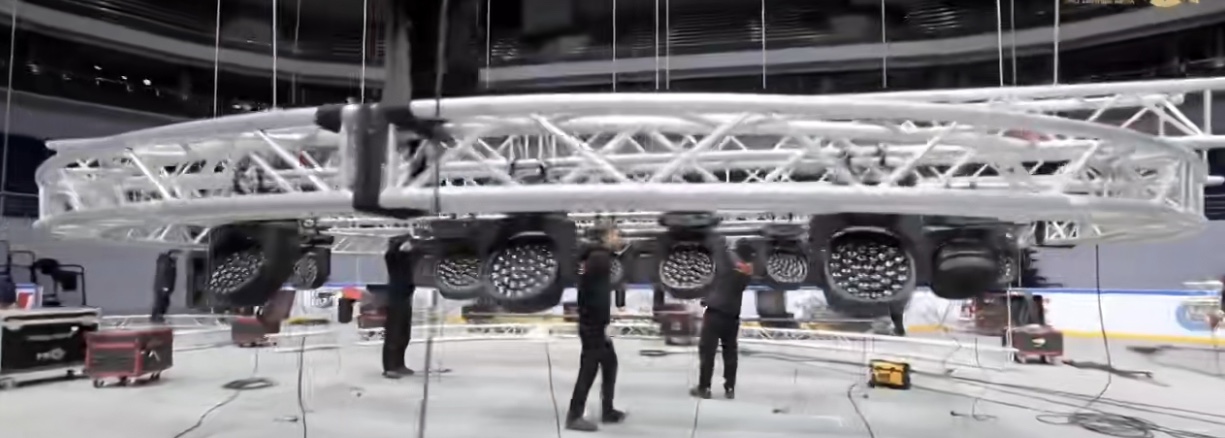

This Transparent Circular Truss is configurated with ITSC-CS29 box truss with main tube 50x2mm and bracing 25x2mm. It is usualy hung with 3/4/5/6/8/10 suspension points, and its loading capacity as shown in the specification form.
Features:

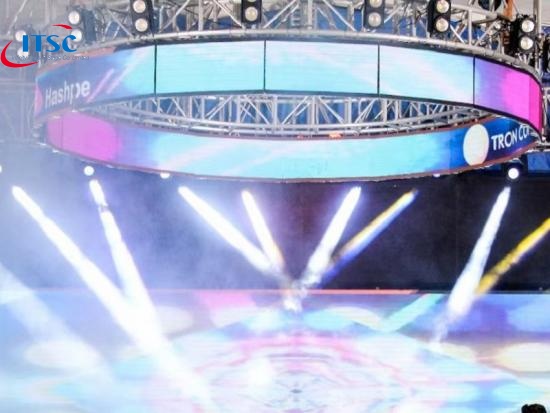

- Usually used for ceiling truss decoration.
- Quick to install with conical coupler system.
- TUV and SGS certificates.
- Any diameter circle truss can be custom.
Specification:
Item | 40ft dia circular truss with 290mm box truss rigging |
Dia | 40ft |
Main rigging | ITSC-CS29 box truss |
Selfweight | 380kg |
Transportation volume | 7.5m3 |
HS code |
7610900000 |
Capacity | 3 suspension points: UDL 29kg/m; CLP 255kg |
4 suspension points: UDL 60kg/m; CLP 390kg |
|
6 suspension points: UDL130kg/m; CLP 640kg |
|
8 suspension points: UDL 210kg/m; CLP 810kg |
|
10 suspension points: UDL 290kg/m; CLP 961kg |
