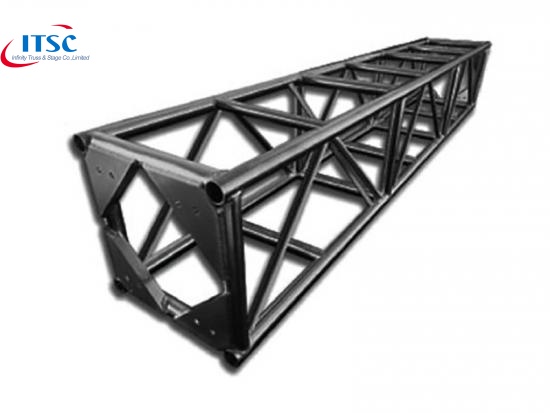

16x16 Inches Aluminium Black Box Truss Beam for Outdoor Lighting Grid:
16x16 Inch Aluminium Black Truss Beam s constructed with main tubes 2" OD x 1/8" thick, and diagonals are 1" OD x 1/8" thick, and it is Bolted connected.
Its standard lengths are usually 1.65', 3.28', 4.92', 6.56', 8.20', 10' ect. Other special lengths can be custom on request as well.
It is usualy equipped with other Blakc Ladder Truss, Black Triangle Truss and Black Box Truss Corners to construct a whole Black Truss Roof.
Features:
- 4- point nodding.
- TUV and SGS approved.
- Free design and technology support.
- OEM and ODM acceptable.
- Powder coating and anodizing to any color without any peeling.
Specification:
Item | 16x16 inch aluminium spigoted black box truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Square |
Main tubes | 2" OD x 1/8 |
Sub-main tubes | 2" OD x 1/8 |
Braces | 1" OD x 1/8" |
Connection type | Bolt and nuts |
Length and Weight:
Length | Weight |
1.65' | 5.48 kg |
3.28' | 9.05 kg |
4.92' | 12.52 kg |
6.56' | 16.00kg |
8.20' | 19.47 kg |
10' | 22.70 kg |
Other length can be custom on request.
Application:
Buy Aluminium Box Truss Beam for all kinds of outdoor entertainment events, such as DJs, studio, concerts, wedding, performances, music bands, as well as decorations, ect.
