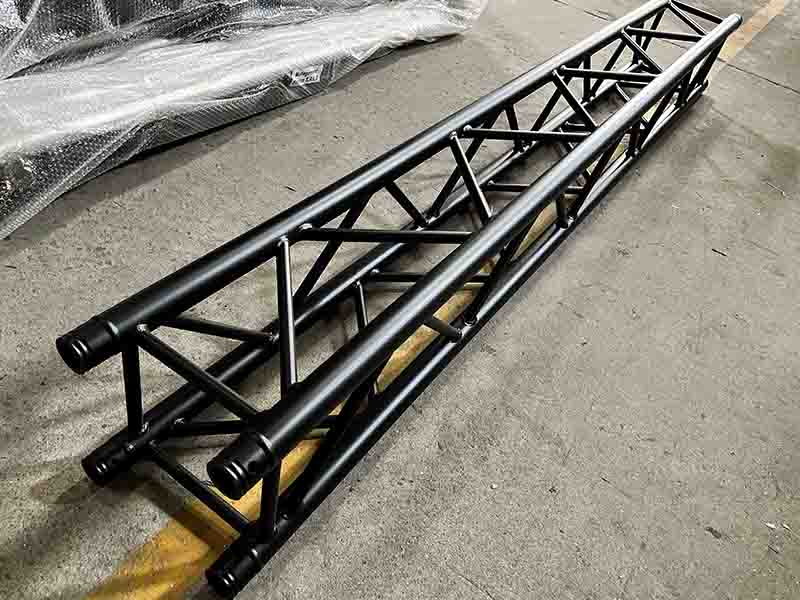

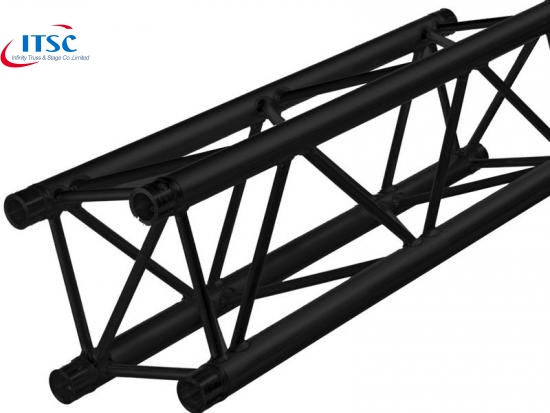

290 x290mm Aluminum Beam Truss Girder for Events:
This China Aluminum Truss Beam is configurated with main tube 50x3mm and bracing 25x2mm. It offers an optimum lifting capacity Centre Poin Load 500kg at 10 m span, and indicates the practical versatile in all kinds of Theatre Rigging System, Stage Cover, Trade Shows, Speaker Towers, ect.
Features:
- 4- point nodding.
- TUV and SGS approved.
- Free design and technology support.
- OEM and ODM acceptable.
- Powder coating and anodizing to any color without any peeling.
Specification:
| Item | 290x290mm Aluminium Quatro Box Truss |
| Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
| Types | Square |
| Main tubes | 50 x 3 mm |
| Sub-Main tube | 30 x 2 mm |
| Braces | 25 x 2 mm |
| Connection type | Conical couple system |
Length and Weight:
| Length | Weight |
| 50 cm | 5.25 kg |
| 100 cm | 8.25 kg |
| 150 cm | 11.25 kg |
| 200 cm | 14.25 kg |
| 250 cm | 17.25 kg |
| 300 cm | 20.6 kg |
Other length can be custom on request.
Application:
This Exhbiition Aluminium Truss Beam is widely used forconcert stagehire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
