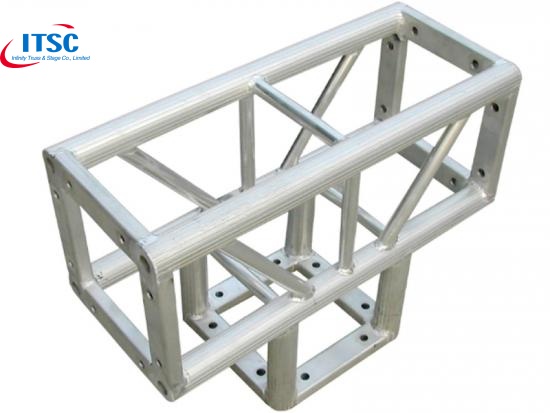

Plated Bolt 3-Way T shape Square Truss Corner Block:
The Truss Corner Block is to create a stable and secureTruss Structure for your Stage Equipment with ITSC-BS30 Square Truss from TSC Truss. This angle creates a T-Shaped 90 degrees corner or turn in your system, and has a length of 500 x 500 mm. Its main tube is 50 x 3 mm, and bracing 25 x 2 mm.
Specification:
Item | 3 way T shape 90 degrees 300x300mm bolted box truss corner |
Material | Aluminum Alloy 6061-T 6 / 6082-T 6 |
Types | Square Truss corner |
Main tubes | 50 x 3 mm |
Braces | 25 x 2 mm |
Connection type | Bolt connection |
Dimensions | 300 x 500 x 500mm |
Selfweight | 7.6kg |
Transportatioin Volume | 0.08m3 |
HS code |
7610900000 |
