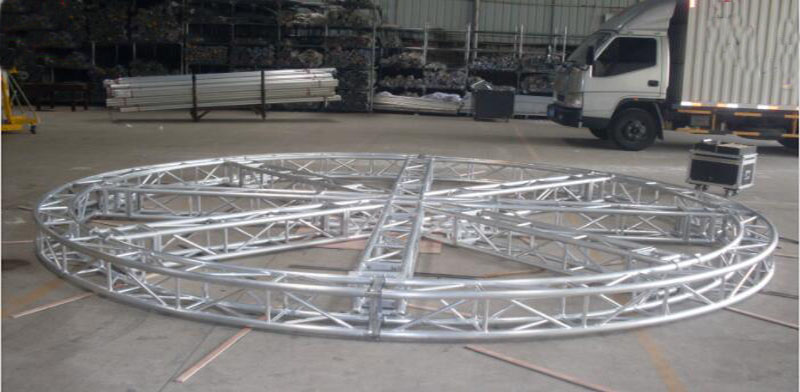

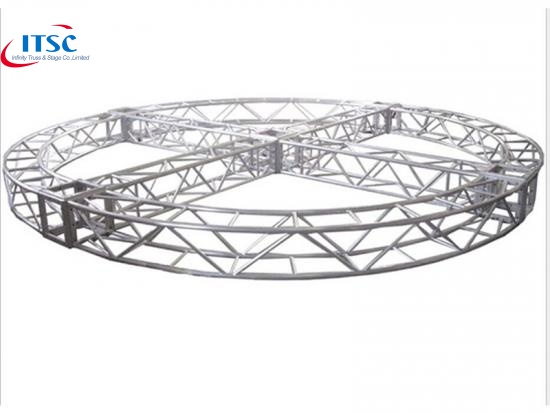

2.5m Dia Circular Truss with middle cross truss and bolt connection:

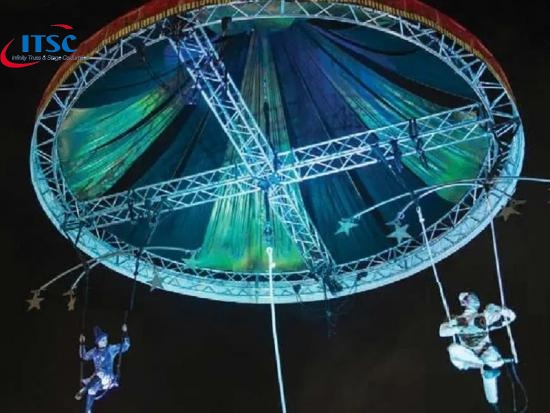

This Circular Truss is configuarted with the Plated Box Truss ITSC-BS30 and simply connected with the bolt and nuts. It features with 2 cross box truss segments in the middle to hang more lighting fixtures and customized according variety of needs: stage lighting truss systesms, indoor and outdoor decorations, school or theatre ceiling lighting hangers, celebration events,ect.
Features:
- Cheaper price compared with the connical coupler trusses.
- stronger for bigger events.
- Fool proof assemble.
- Any diameter customized.
- High accuracy for every arch segments and easy to install.
Specification:
| Item | 2.5m dia aluminium circle truss system |
| Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
| Types | Box Truss Circular |
| Main tubes | 50 x 2 mm |
| Sub-main tube | 30x2mm |
| Bracing | 25x2mm |
| Connection type | Plated bolt screw |
| HS code |
7610900000 |
Arc Lengths:
| Diameter（m) | Arc |
| 1.5 m | 2 x 180 degree arcs |
| 2 m | 2 x 180 degree arcs |
| 2.5m | 4 x 90 degree arcs |
| 3 m | 4 x 90 degree arcs |
| 4 m | 4 x 90 degree arcs |
| 5 m | 8 x 45 degree arcs |
| 6 m | 8 x 45 degree arcs |
Other length can be custom on request.
