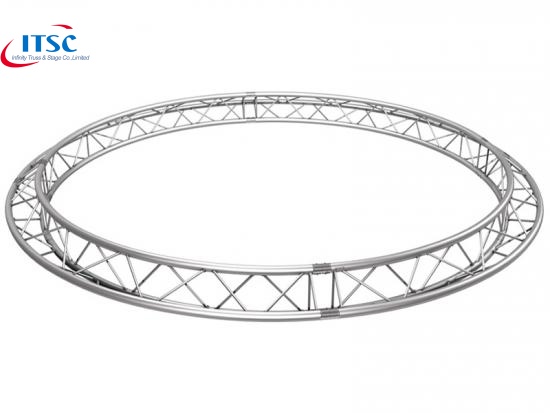

15ft Global Circular Ring Truss for Lighting Equipment:
This Ring Truss Lighting Equipment is configuarted with the Spigot Triangular Truss ITSC-CT29 and simply connected with the conical coupler connectors. It is customized according to some requirements for DJs, parties, weddings, stage entertainment, exhibition booths .
Features:
- Lightweight and portable
- TUV and SGS approved
- Fool proof assemble
- Any diameter customized
- Quick to install with conical coupler system
Specification:
Item | 15ft dia Global circular ring truss with 290x290mm tri truss segment |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Circular truss with triangular trusses |
Main tubes | 50 x 2 mm |
Bracing | 20x2mm |
Connection type | Conical couple system |
Self weight |
73kg |
Transportation volume | 2.2m3 |
HS code |
7610900000 |
Capacity |
3 Suspension Points: UDL 56kg/m; CLP 230kg |
4 Suspension Points: UDL 109kg/m; CLP 380kg |
|
6 Suspension Points: UDL 243kg/m; CLP 730kg |
|
8 Suspension Points: UDL 540g/m; CLP 870kg |
|
10 Suspension Points: UDL 540kg/m; CLP 896kg |
Arc Lenghts:
Diameter(m) | Arc |
1.5 m | 2 x 180 degree arcs |
2 m | 2 x 180 degree arcs |
3 m | 4 x 90 degree arcs |
4 m | 4 x 90 degree arcs |
5 m | 8 x 45 degree arcs |
6 m | 8 x 45 degree arcs |
Other length can be custom on request.
