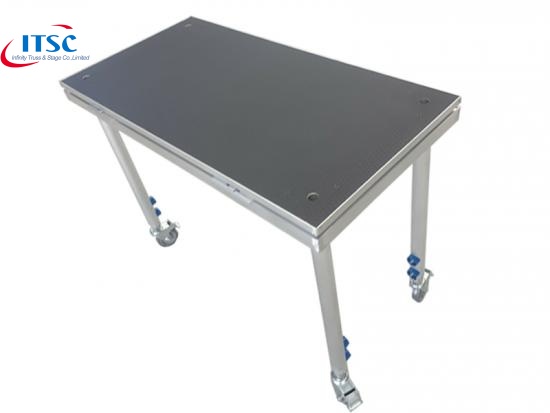

1x2m Aluminium Quick Lock Portable Stage on wheels:
This Quicl Lock Portable Stage is featured with wheels for easy move, expecially used for indoor DJ events.
It is developed from ITSC-S12 which is supported with aluminum frame and equipped with 18mm birch tree fiber plywood board covered with a smooth phenolicresin anti-humidity waterproof topping. The height can be adjustable in several heights from 20-200cm. Any dimensions of staging lighting system can be completed by locking the stage legs with each other.
Features:
- Waterproof and anti-slip for outdoor and indoor concert events.
- Aluminum frame and lightweight for mobile use.
- DIY fast assembling, no any tools.
- Height adjustable for uneven floor.
- Interconnected framework acting as ballast systems for truss roof constructions.
- Factory price only.
- Equiped with wheels for easy move.
Specification:
| Item | 1x2 quick lock portable stage on wheels |
| Material | Aluminum Alloy 6061-T 6 |
| Dimensions | 1x2m |
| Types | Square |
| Main tubes | 50 x 3 mm |
| Stage Topping | 18 mm birch tree fiber plywood board covered with a smooth phenolic resin anti-humidity layer, anti-slip, waterproof |
| Self-weight | 45 kg /pcs |
|
Volume |
0.2 m3/pcs |
| Capacity |
500kg /m2 |

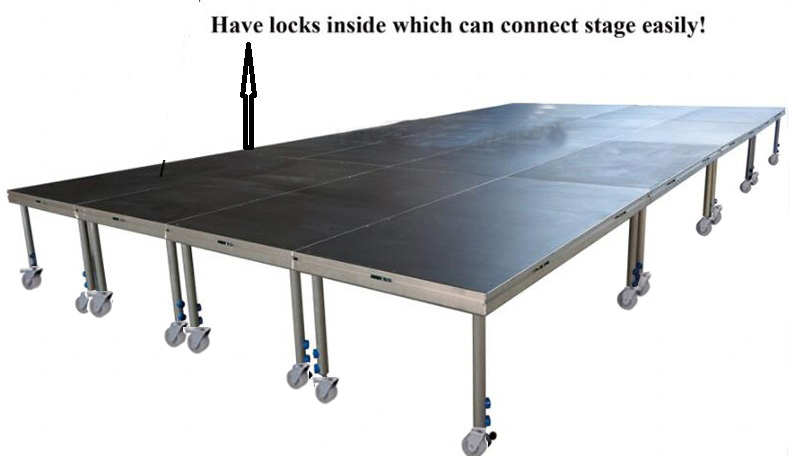

How to build this Portable Stage On Wheels for Music?
- Loosen the holes at the back angle of the stage deck
- Put the legs inside each hole one by one and lock them firmly
- Erect the stage decks and roll out the keys from the deck with a tool
- Lock the key in one deck to the groove in another deck and fix it
The whole Portable Stage Panels On Wheels are DIY setup without any other special tools.
