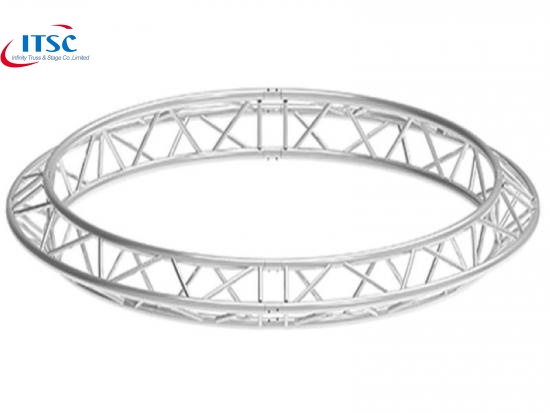

8ft Apex Out Triangle truss Cricular Structure For Sale:
This Tri Circular Truss Kit is configuarted with the Spigot Triangular Truss ITSC-CT29 and simply connected with the conical coupler connectors. It is customized according to some requirements for DJs, parties, weddings, stage entertainment, exhibition booths .
Features:
- Lightweight and portable
- TUV and SGS approved
- Fool proof assemble
- Any diameter customized
- Quick to install with conical coupler system
Specification:
| Item | 8ft dia triangular circular truss with 290x290mm tri truss segment |
| Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
| Types | Circular truss with tirangular |
| Main tubes | 50 x 2 mm |
| Bracing | 20x2mm |
| Connection type | Conical couple system |
| Self weight |
37kg |
| Transportation volume | 2.07m3 |
| HS code |
7610900000 |
|
Capacity |
3 Suspension Points: UDL 210kg/m; CLP 320kg |
|
4 Suspension Points: UDL 240kg/m; CLP 450kg |
|
|
6 Suspension Points: UDL 420kg/m; CLP 675kg |
|
|
8 Suspension Points: UDL 620kg/m; CLP 830kg |
|
|
10 Suspension Points: UDL 840kg/m; CLP 930kg |
Arc Lenghts:
| Diameter(m) | Arc |
| 1.5 m | 2 x 180 degree arcs |
| 2 m | 2 x 180 degree arcs |
| 3 m | 4 x 90 degree arcs |
| 4 m | 4 x 90 degree arcs |
| 5 m | 8 x 45 degree arcs |
| 6 m | 8 x 45 degree arcs |
Other length can be custom on request.
