200mm Metal Light Duty DJ Small Square Box Truss Price:
The Price for this Square Box Truss is just at USD24.00/m for small DJ Truss Booth.

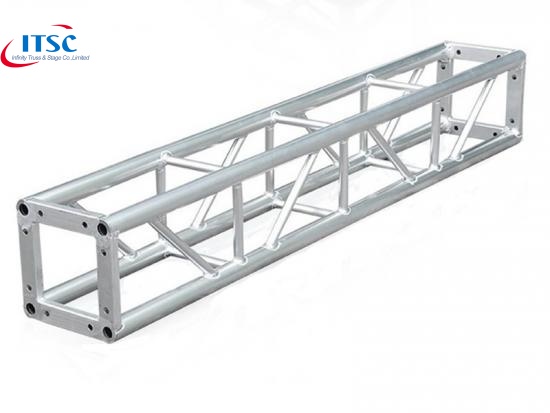

This Small Box Truss is produced with main tube 30x2mm and brace 20x2mm equipped with M10 bolts nuts for free. It is designed for high-frequency usage and installation that require good loading and durable solutions for perfect Djs, live outdoor or indoor events projects, exhibition booths, touring, nightclubs and other performance setup,ect. It is ideal for hire and event planning companies.
Measurements:
Features:
- Every pics is no more than 9kg (20lbs).
- Loading capacity 225kg ( 500 lbs).

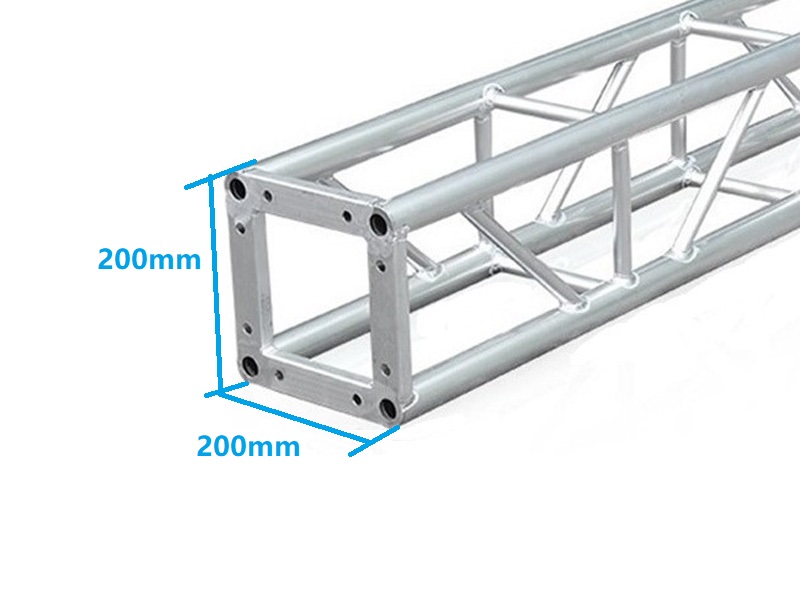

- Compactive box shape 200x200mm ( 8"x8").
- Equiped with M10 bolt which is very easy to have in the market.
- Modular and flexible use in DJs, medias, event stages,ect.
Package Contents:
- All lengths of box trusses required

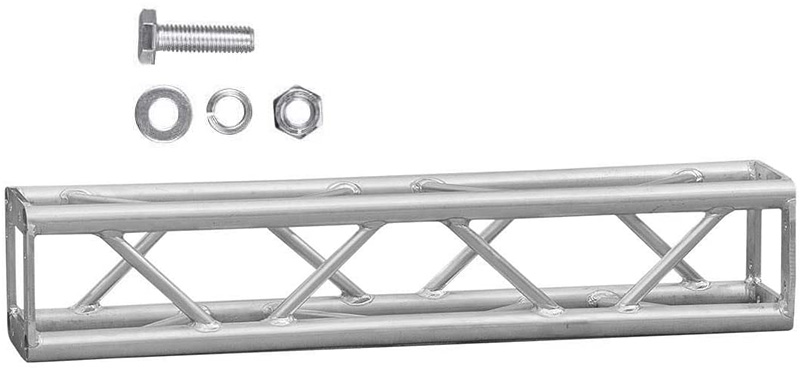

- Sets of M10 bolt and nuts demaned for the required box trusses segments
Specification:
Item name | 200mm Small Box Truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Square |
Main tubes | 30 x 2 mm |
Braces | 12x 2 mm |
Connection type | M10 screw bolt nuts |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
50 cm | 2.05 kg |
100 cm | 3.05 kg |
150 cm | 5.25 kg |
200 cm | 5.8kg |
250 cm | 7.05 kg |
300 cm | 8.9 kg |
Other length can be custom on request.
Application:

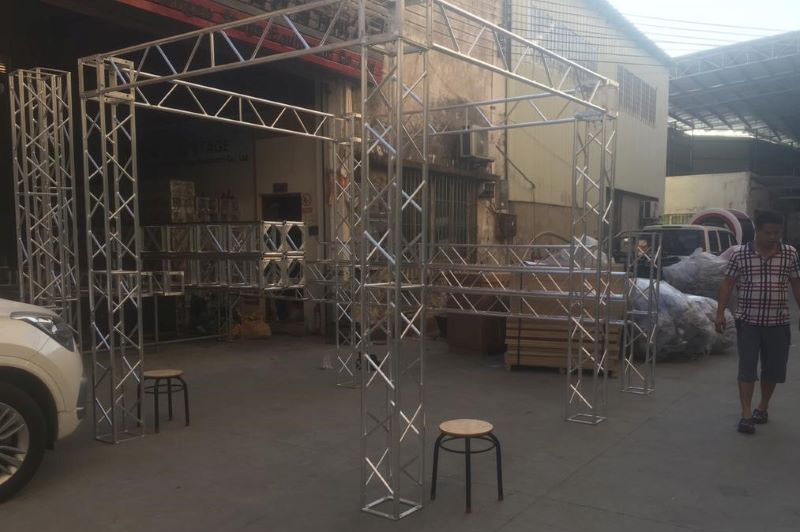

The Box Section Truss is compative in shape and easy to install, lightweight and portable, very durable for small events like DJ booths, exhibition booths, night clubes,ect.
