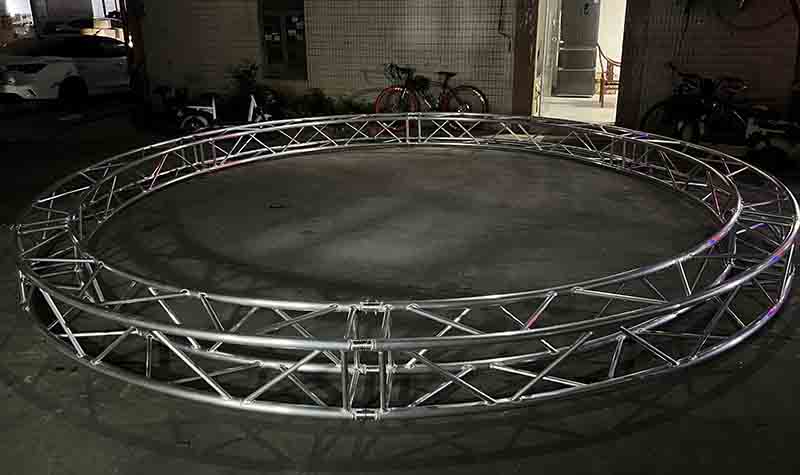

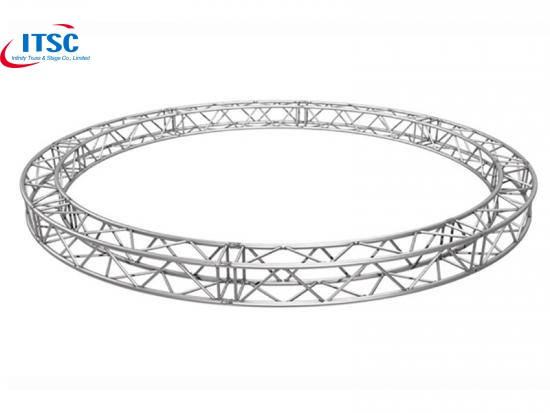

Heavy Duty Round Box Truss Circular Segments:

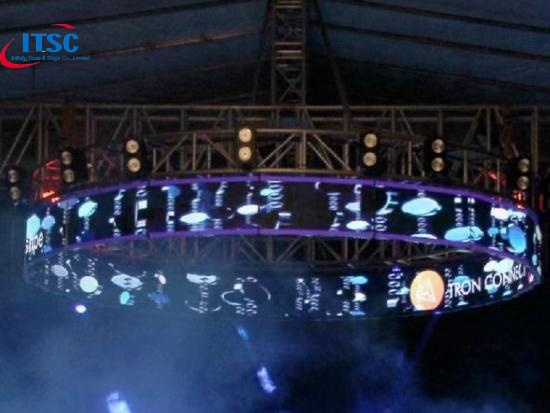

This Circular Truss Equipment is configuarted with only the Spigoted Box Truss ITSC-CS39 and simply connected with the conical coupler connectors. Its main tube 50x2mm, and bracing 25x2mm. It is customized according variety of needs: stage lighting truss systesms, indoor and outdoor decorations, school or theatre ceiling lighting hangers, celebration events,ect.
Features:
- Quick to install.
- stronger for bigger events.
- Fool proof assemble.
- Any diameter customized.
Specification:
Item | 5M dia truss circular with 390x390mm sigot box truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Box Truss circle |
Main tubes | 50 x 2 mm |
Bracing | 25x2mm |
Connection type | Conical coupler system |
HS code |
7610900000 |
Capacity |
3 Suspention Points: 210kg/m; CLP 710kg |
4 Suspention Points: 320kg/m; CLP 950kg |
|
6 Suspention Points: 530kg/m; CLP 1240kg |
|
8 Suspention Points: 740kg/m; CLP 1410kg |
|
10 Suspention Points: 950kg/m; CLP 1501kg |
Arc Lengths:
Diameter(m) | Arc |
1.5 m | 2 x 180 degree arcs |
2 m | 2 x 180 degree arcs |
3 m | 4 x 90 degree arcs |
4 m | 4 x 90 degree arcs |
5 m | 8 x 45 degree arcs |
6 m | 8 x 45 degree arcs |
8 m | 8 x 45 degree arcs |
10 m | 16 x 22.5 degee arcs |
12 m | 16 x 22.5 degree arcs |
Other length can be custom on request.
