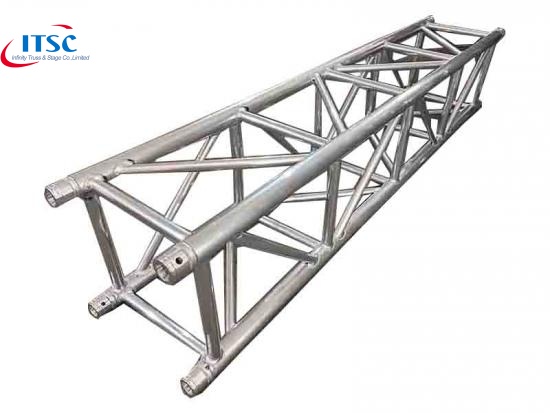

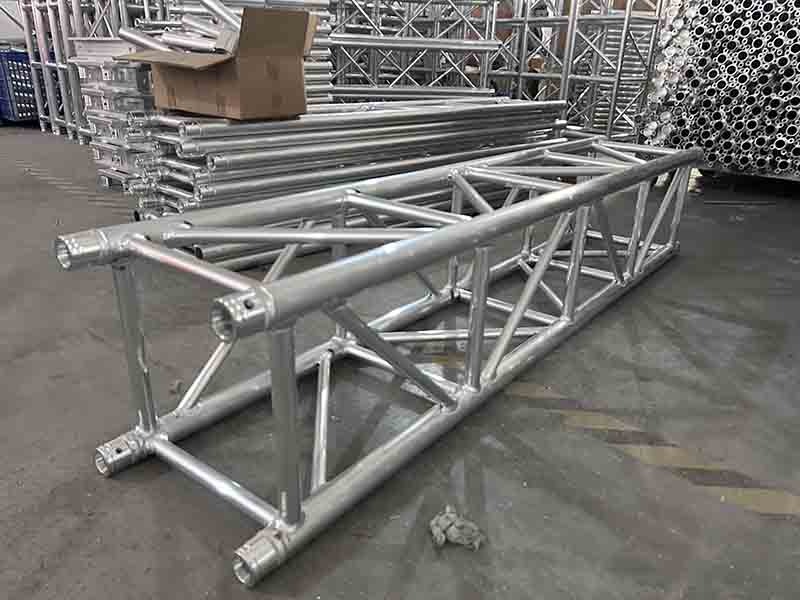

Aluminum Lighting Truss 2m for Aeria Rigging System Legs:
This Truss 2m is custom as legs for areia rigging system legs for the USA market.
Features:
- 4- point nodding.
- TUV and SGS approved.
- Free design and technology support.
- OEM and ODM acceptable.
- Powder coating and anodizing to any color without any peeling.

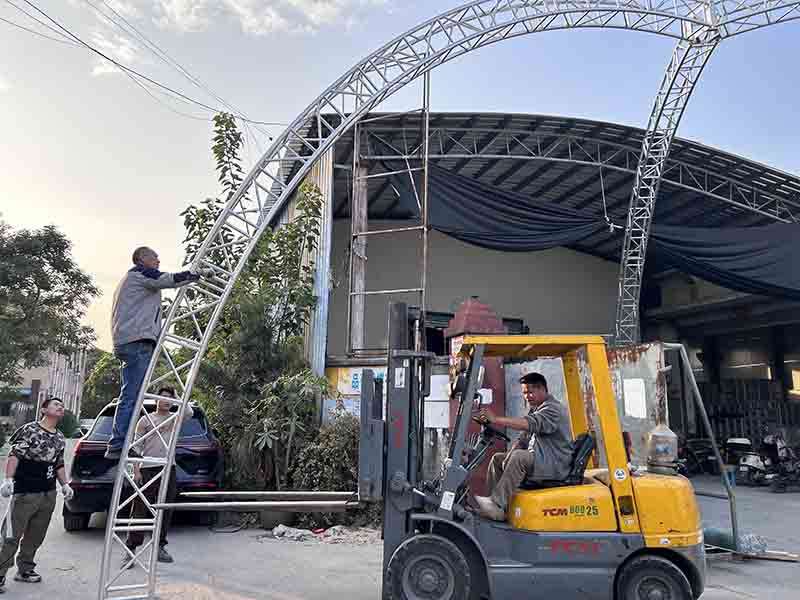

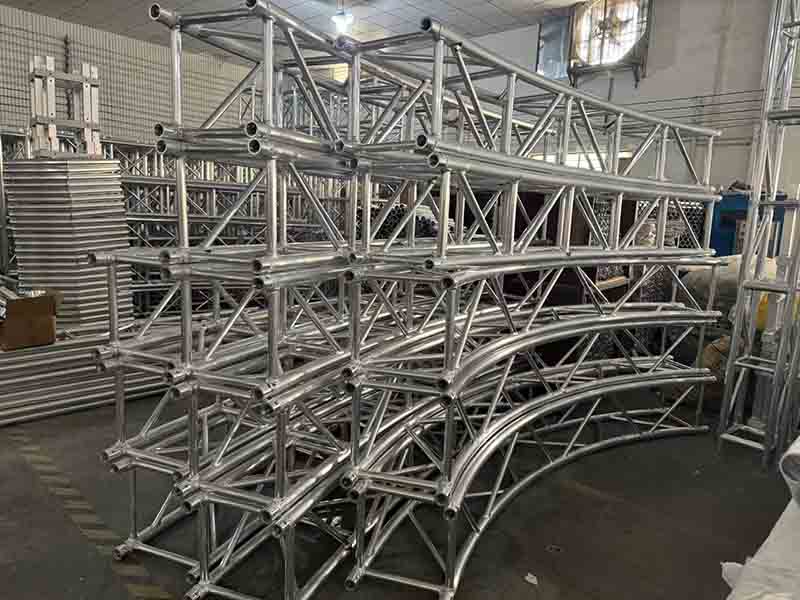

This Truss 2m can be also custom to be curved for Aerial Rigging.
Specification:
Item | F44 box truss 2m |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Square |
Main tubes | 50 x 3 mm |
Sub-Main tube | 30 x 2 mm |
Braces | 25 x 2 mm |
Connection type | Conical couple system |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
50 cm | 5.75 kg |
100 cm | 9.5 kg |
150 cm | 15.25 kg |
200 cm | 17 kg |
250 cm | 18.75 kg |
300 cm | 25 kg |
Other length can be custom on request.
Application:
This Truss 2m is applied for heavy duty aerial rigging truss system for outdoor events.
