Aerial Rig boast a unique curved truss roof design that adds a touch of elegance and sophistication to any event. Whether you're organizing a breathtaking music concert, a dazzling fashion show, or an unforgettable corporate gathering, these trusses will awe your audience and elevate your event to new heights.

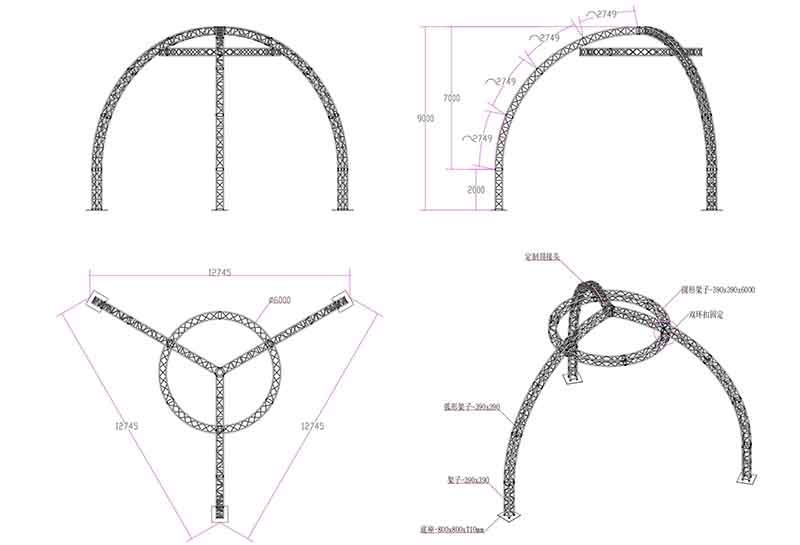

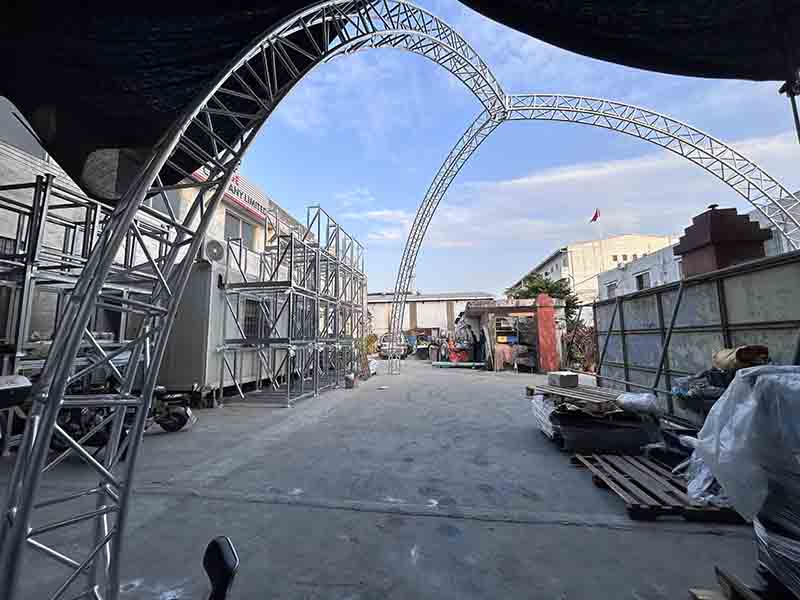

Portable Aerial Rig Design:

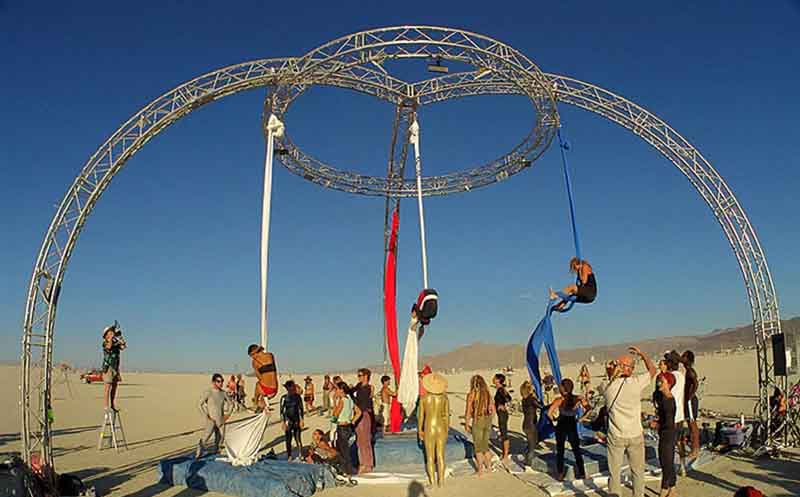

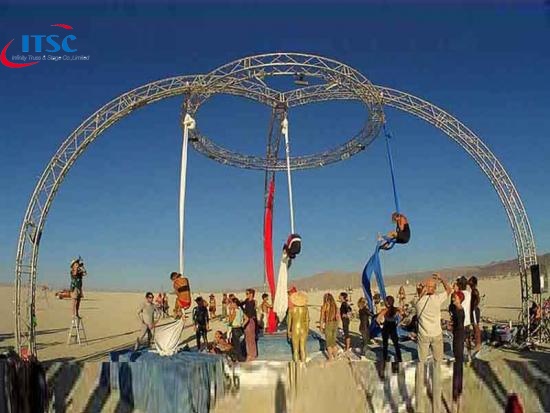

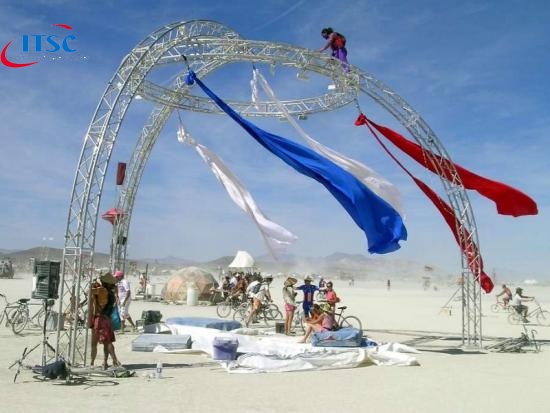

This Portable Aerial Rig supplies customized dome roof system for special outdoor yoga, hoop, freestanding, hammock, circus.ect. Its main rigging is ITSC-CS39 square box truss with conical coupler connection which is quick and easy to install.
Features:
- With TUV/SGS certificate and compatitable with global truss.
- Quick to install.
- Hight accurate and easy to install.
- Anti-Crossive.
- Installation available before delivery to test the whole structure.
Specification:
| Item | 12m dia outdoor Aerial Rig frame |
| Material | 6061-T6/ 6082-T6(Optionable) |
| Truss main tube | 50x3mm |

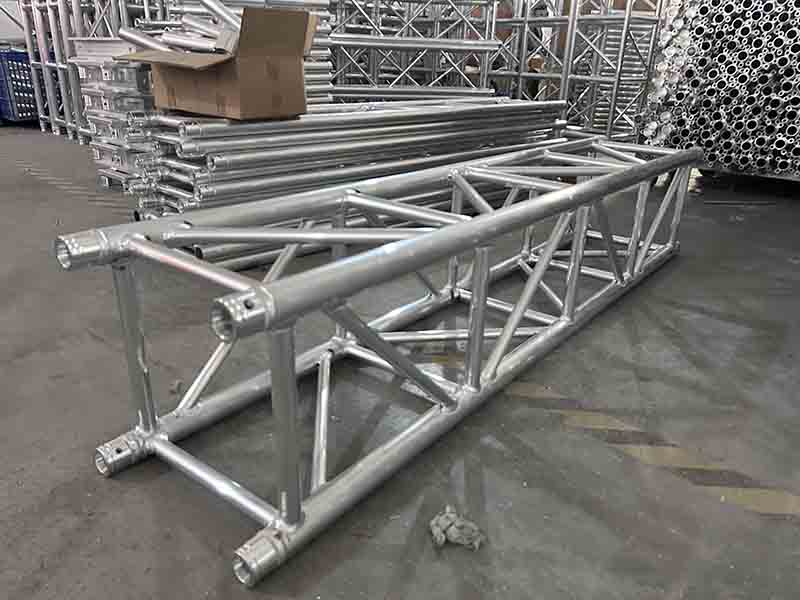

| Main rigging | Heavy duty 390x390mm box truss |
| Dimensions | 12m Dia x 9m H |
| Selfweight | Approx.1810kg |
| Transporation volume | 11 m3 |
| Capacity | 677kg |
How to install the aerial rig truss?

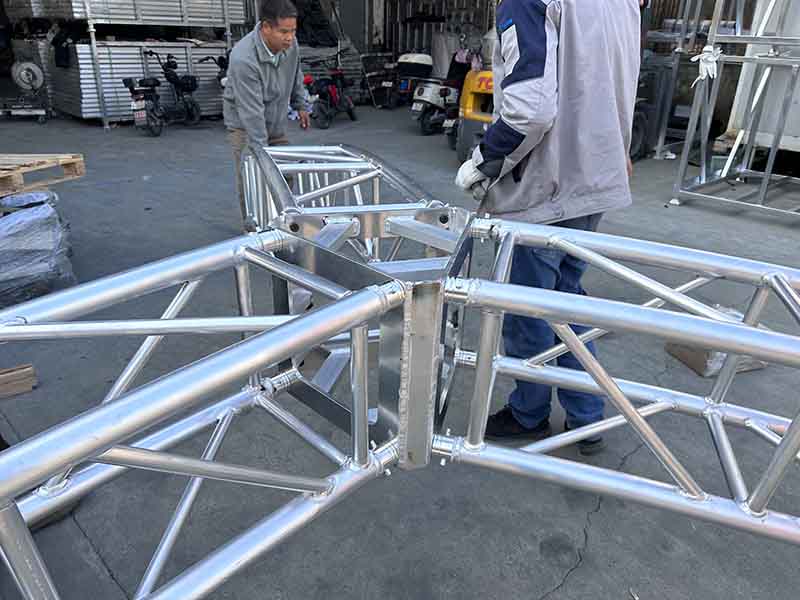

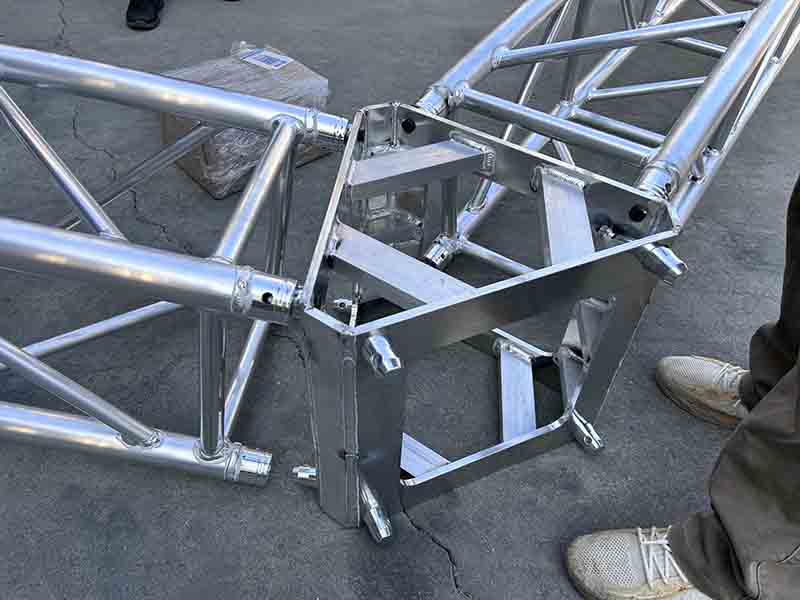

Step 1: Connect the curved lighting truss to the custom 3 way corners in the middle.

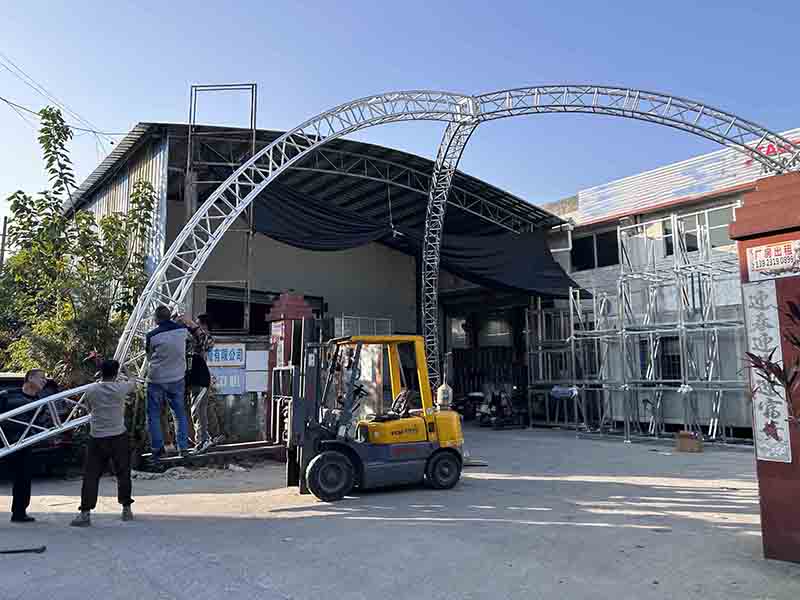

Step 2: Connect the Curved legs with the help of forklift;
Step 3: Adjust the whole truss structure with forklift to be stable.

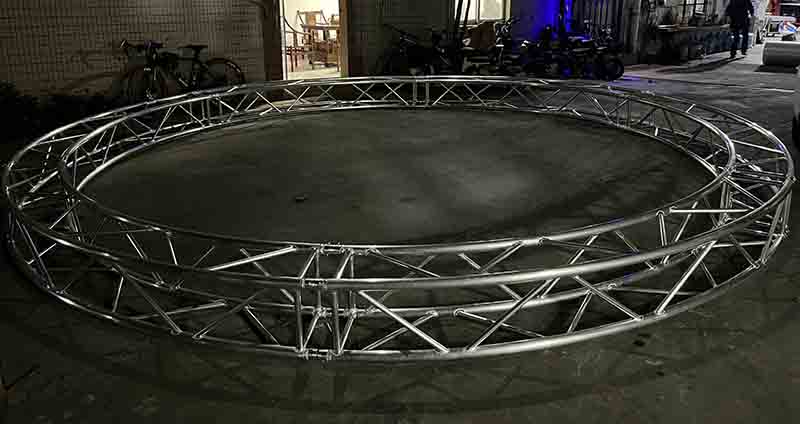

Step 4: Finaly, attach the truss circle under the right height you need.

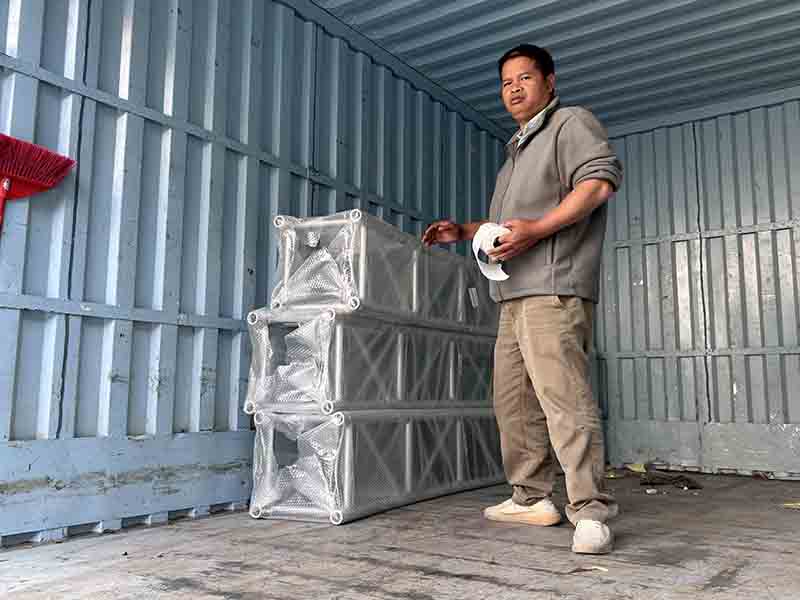

Loading and Delivry to USA:
Why choose us?
Impeccably engineered, our aluminum trusses guarantee safety, reliability, and durability. With their lightweight yet sturdy construction, they can withstand even the most ambitious setups, ensuring a secure environment for performers, technicians, and spectators alike. These trusses are built to last, enabling you to create unforgettable experiences time and time again.
