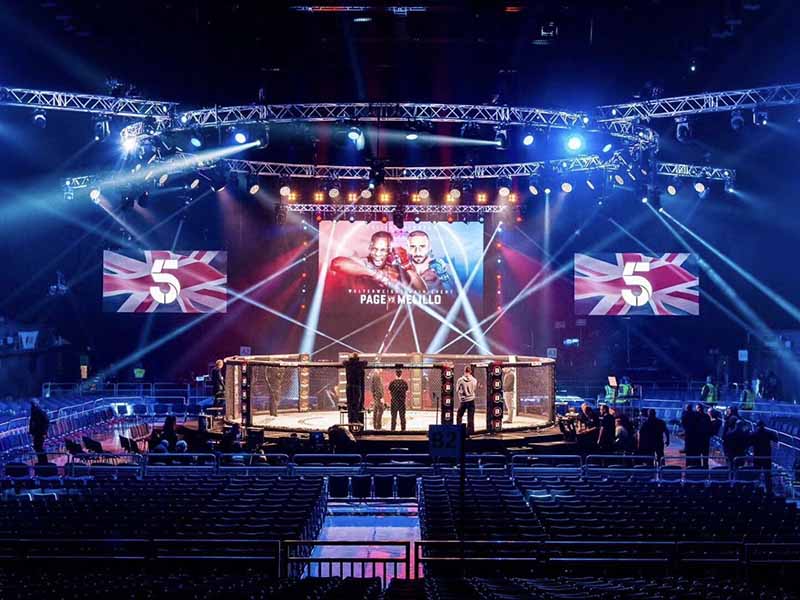

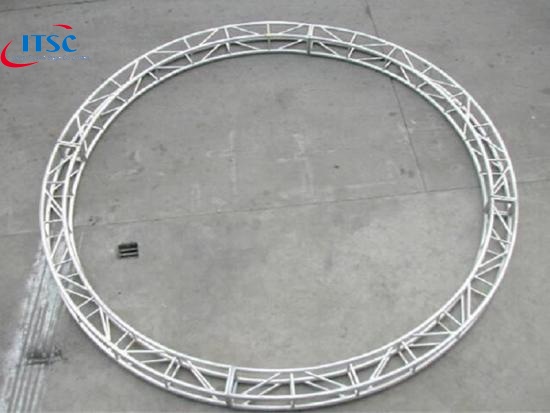

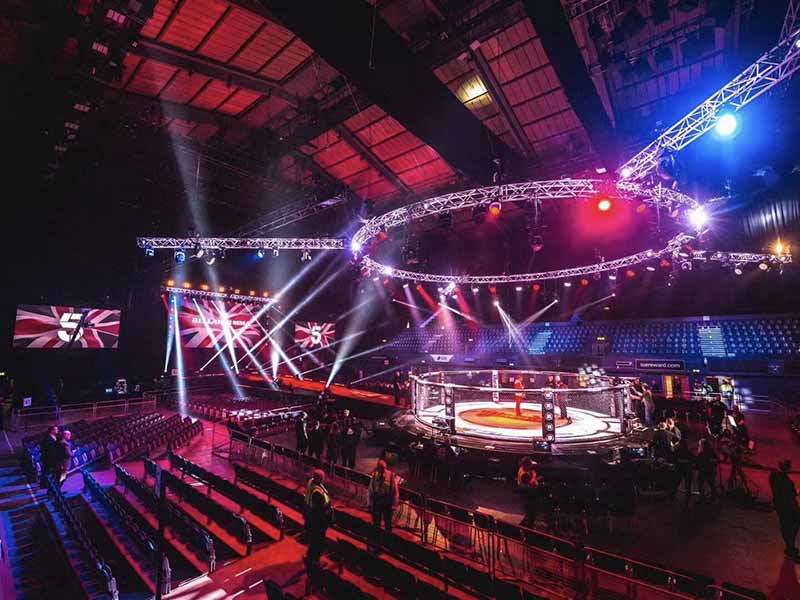

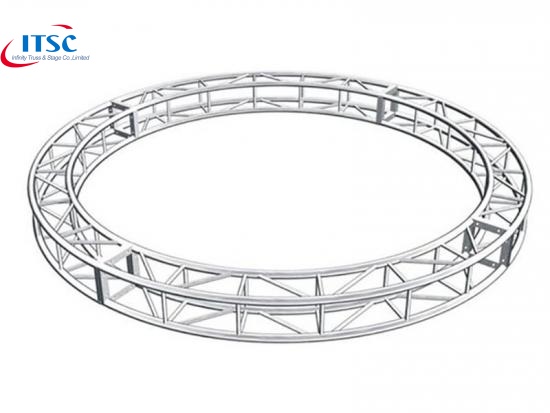

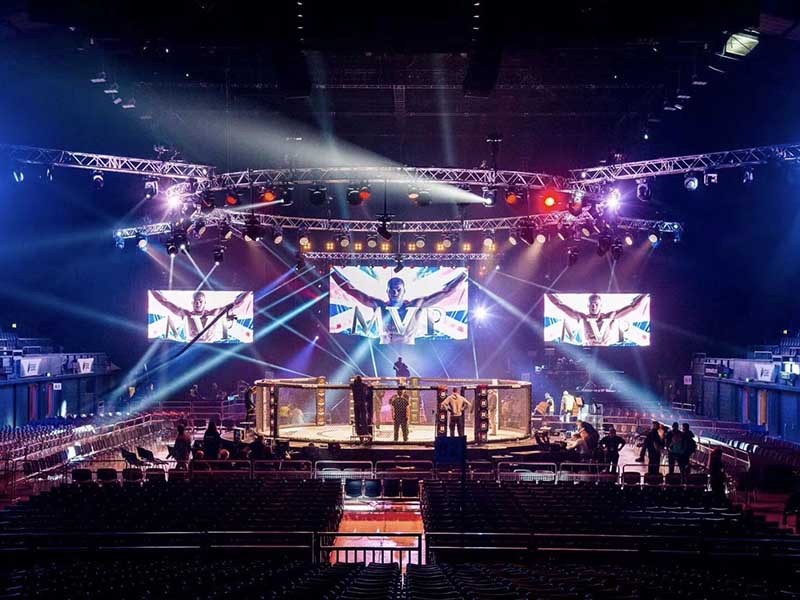

Outdoor Circle Stage Truss for Churches:
This Metal Circle Stage Truss is configuarted with the Plated Box Truss ITSC-BS30 and simply connected with the bolt and nuts. It is customized according to a variety of needs: stage lighting truss systesms, indoor and outdoor decorations, school or theatre ceiling lighting hangers, celebration events,ect.
Features:
- Cheaper price compared with the connical coupler trusses
- stronger for bigger events
- Fool proof assemble
- Any diameter customized
- High accuracy for every arch segments and easy to install
Specification:
| Item | 12ft dia circle trusss with 300x300mm plated bolted box trusses |
| Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
| Types | circle box truss |
| Main tubes | 50 x 2 mm |
| Sub-main tube | 30x2mm |
| Bracing | 25x2mm |
| Connection type | Plated bolt screw |
| Self weight |
29kg |
| Transportation volume | 0.6m3 |
| HS code |
7610900000 |
| Capacity | 3 Suspension Points: UDL 110kg/m; CLP 298kg |
|
4 Suspension Points: UDL 198kg/m; CLP 430kg |
|
|
6 Suspension Points: UDL 385kg/m; CLP 650kg |
|
|
8 Suspension Points: UDL 560kg/m; CLP 821kg |
|
|
10 Suspension Points: UDL 790kg/m; CLP 902kg |
Arc Lengths:
| Diameter（ft) | Arc |
| 5ft | 2 x 180 degree arcs |
| 6.5ft | 2 x 180 degree arcs |
| 8.2ft | 4 x 90 degree arcs |
| 10ft | 4 x 90 degree arcs |
| 13ft | 4 x 90 degree arcs |
| 16.5ft | 8 x 45 degree arcs |
| 20ft | 8 x 45 degree arcs |
Other length can be custom on request.
