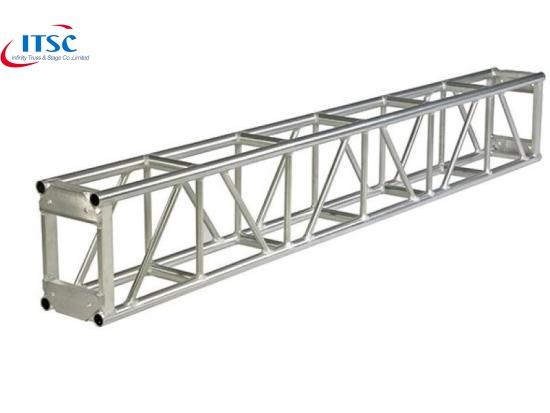

Aluminium DIY Rectangular Bolted Box Truss Frame for Sale:
The China Rectangular Box Truss is configurated with main tube 50x3mm, and sub-main tube 30x2mm. With bolted connection system, it is cheap in price compared with the spigot box truss.
Features:
- 4- point nodding.
- TUV and SGS approved.
- Free design and technology support.
- OEM and ODM acceptable.
- Powder coating and anodizing to any color without any peeling.
Specification:
| Item | 12x16inch rectangular bolted box truss frame |
| Material | Aluminum Alloy 6082-T 6 |
| Types | Rectangle |
| Main tubes | 50 x 3 mm |
| Sub-Main tube | 30 x 2 mm |
| Braces | 25 x 2 mm |
| Connection type | bolted |
| HS code |
7610900000 |
Length and Weight:
| Length | Weight |
| 50 cm | 5.1 kg |
| 100 cm | 8.2 kg |
| 150 cm | 13.85 kg |
| 200 cm | 13.95 kg |
| 250 cm | 17.00 kg |
| 300 cm | 20.6 kg |
Other length can be custom on request.
Application:

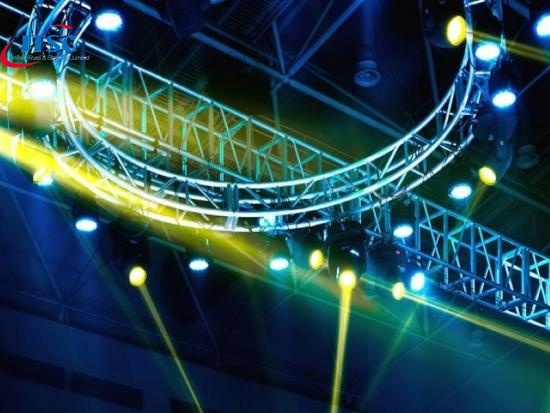

The box aluminium truss is widely used for Truss Beam, Roof Truss Support Beam, Truss Beam Bridge, I Beam Roof Trusses.
