16 Aluminium Light Duty Portable Box Truss For Decoration:

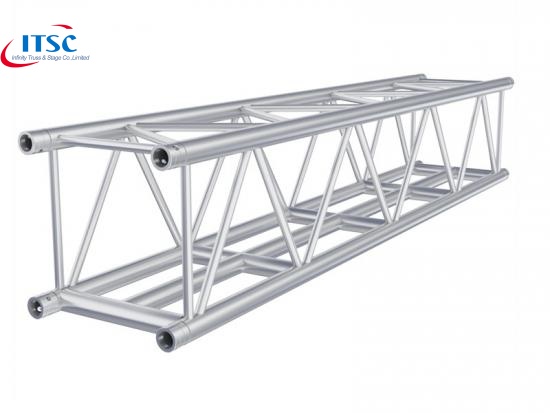

16x16 Aluminium Spigot Box Truss is constructed with main tubes 2" OD x 1/8", and diagonals are 1" OD x 1/8", and it is conical coupler connected.
Its standard lengths can are usually 1.65', 3.28', 4.92', 6.56', 8.20', 10' ect. Other special length can be custom on request as well.
It is usualy equipped with Box Truss Stages to construct a whole Box Truss Roof Structure.
Features:
- 4- point nodding.
- TUV and SGS approved.
- Free design and technology support.
- OEM and ODM acceptable.
- Powder coating and anodizing to any color without any peeling.
Specification:
Item | 16x16 inch spigoted box truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Square |
Main tubes | 2" OD x 1/8 |
Sub-main tubes | 1" OD x 1/8" |
Braces | 1" OD x 1/8" |
Connection type | Plated with Bolt |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
1.65' | 5.28 kg |
3.28' | 8.65 kg |
4.92' | 11.92 kg |
6.56' | 15.20kg |
8.20' | 18.47 kg |
10' | 21.50 kg |
Other length can be custom on request.

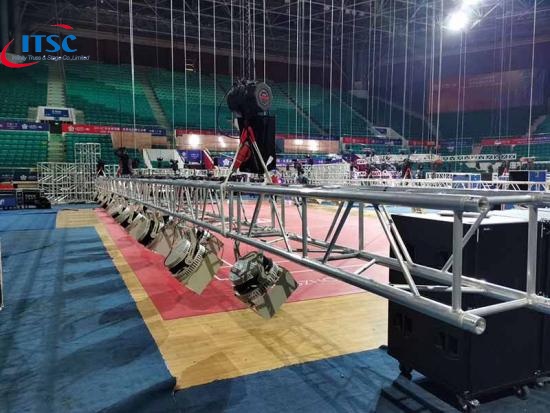

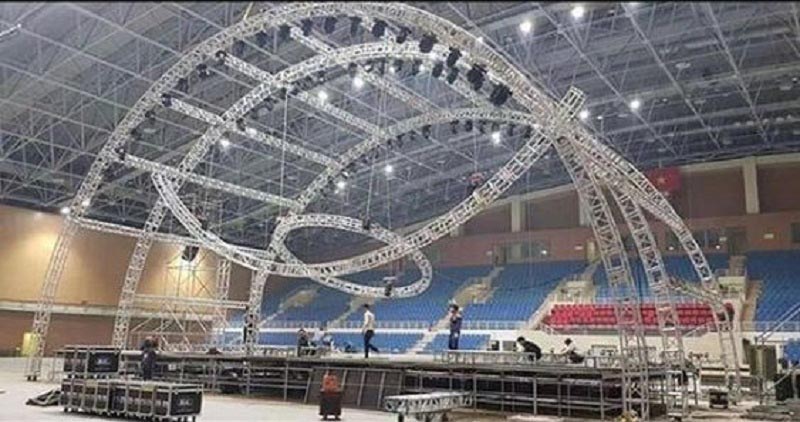

Application:
This 16 Box Truss Rigging is widely used for outdoor events, hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
