290mm Aluminum Box Curved Truss Spigot for sale

This Aluminium Alloy Curved Box Truss is based on the ITSC-CS29 box truss to be curved for other architecture truss systems or circular box trusses.
  • Item NO.:

    ITSC-CS29C
  • Payment:

    30% in advance, balance on delivery
  • Product Origin:

    Guangzhou, China
  • Color:

    Silver
  • Shipping Port:

    Guangzhou, Shenzhen
  • Lead Time:

    With 3 working days
  • Product Detail


Lighweight Curved Box Truss Alloy Grid :


This Light Duty Curved Box Truss is developed from ITSC-CS29 Box Truss, and it is  constructed with main tubes 50x3mm, and diagonals are 20x2mm. It is usualy equipped with other box truss corners to construct a whole circular box truss or Curved roof system.

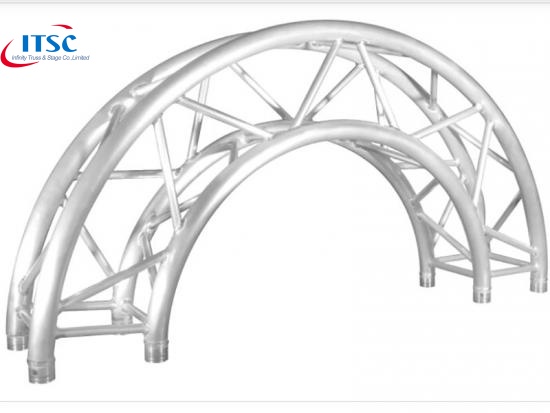

truss arch system


Features:


  1. 4- point nodding
  2. TUV and SGS approved
  3. Free design and technology support
  4. OEM and ODM acceptable
  5. Powder coating and anodizing to any color without any peeling


Specification:


Item 290mm Curved Box SpigotedTruss
Material Aluminum Alloy 6061-T 6/ 6082-T 6
Types Curved
Main tubes 50x3mm
Sub-main tubes 25x2mm
Braces 20x2mm
Connection type Conical coupler


Length and Weight:


Length Weight
50cm 5.18 kg
1m 8.25 kg
1.5m 11.32 kg
2m 14.40kg
2.5m 17.47 kg
3m 20.30 kg

Other length can be custom on request.


Application:


This Curved Box Truss Revit is widely used in UK for outdoor events, hire, decorations, car shows, exhibitions booths, churches, world cup events, ect.
