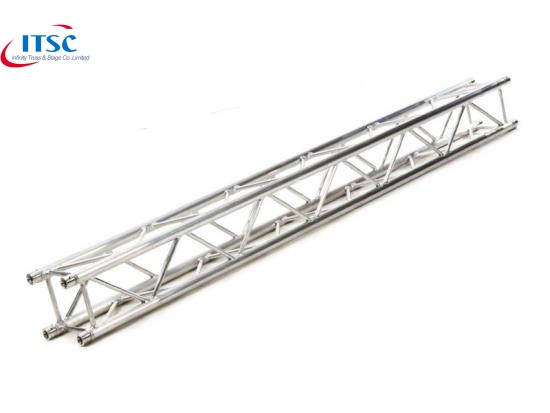

6"x6" Aluminium Alloy Grid Box Truss Kit :
This Outdoor Grid Box Truss is made of main tube 1.18"x0.07" and brace 0.79"x0.07" equipped with spigot pins for free. Its Centre Point Load is 210kg at 4m span. It is designed for high-frequency usage and installation that require good loading and durable solutions for perfect Djs, live outdoor or indoor events projects, exhibition booths, touring, nightclubs and other performance setup,ect. It is ideal for hire and event planning companies.
Features:
- Every pics is no more than 6kg (13.4lbs).
- Loading capacity 210kg ( 466 lbs) at 4m span.
- Equiped with conical cupler system which is very easy to install.
- Modular and flexible use in DJs, medias, event stages, ect.
Package Contents:
- All lengths of Grid Box Truss Rigging required
- Sets of conical coupler and pins and R clips for the required Grid Box Truss System
Specification:
Item name | 6x6 Inch Mini Spigoted Box Truss |
Material | Aluminum Alloy 6061-T 6/ 6082-T 6 |
Types | Square |
Main tubes | 1.18"x0.07" |
Braces | 0.79"x0.07" |
Connection type | conical cupler connection |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
50 cm | 1.95 kg |
100 cm | 2.85 kg |
150 cm | 4.95 kg |
200 cm | 5.4kg |
250 cm | 6.55 kg |
300 cm | 8.3 kg |
Other length can be custom on request.
Application:

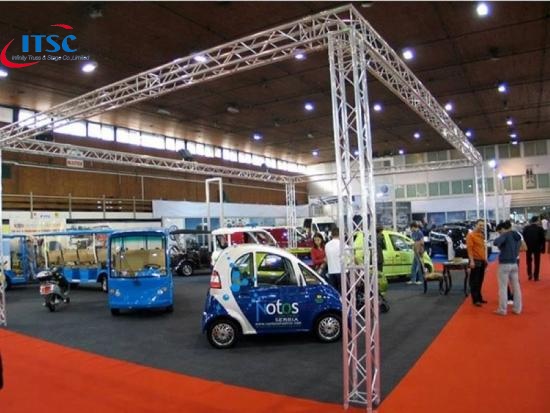

The Aluminium Metal Grid Box Truss is compative in shape and easy to install, lightweight and portable, very durable for small events like DJ booths, exhibition booths, night clubes, studio, ect.
