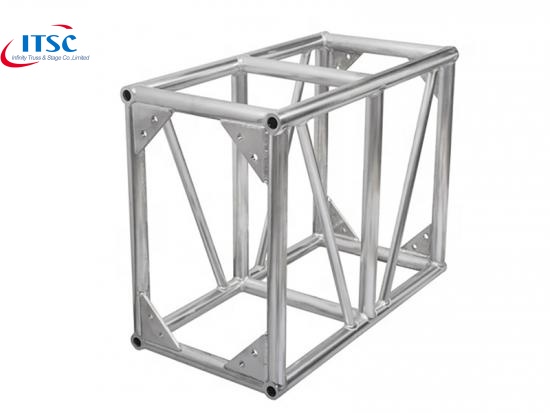

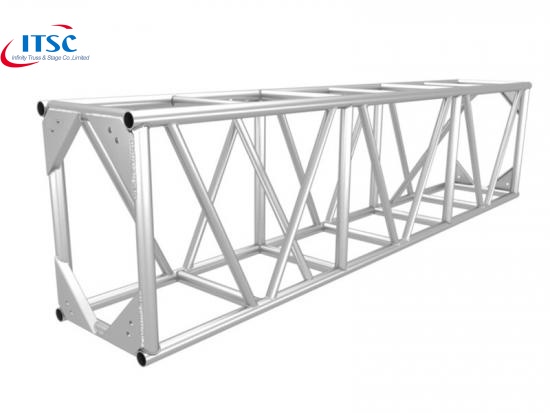

Aluminium Lighting Bolted Box Truss For Sale:
This Aluminium Truss Bar is heavy duty and it can expand to be 24m span with 1270kg capacity. It is constructed with maiin tube 50x4mm, sub-main tube 50x2mm, and bracing 25x2mm.
Features:
- 4- point nodding
- TUV and SGS approved
- Free design and technology support
- OEM and ODM acceptable
- Powder coating and anodizing to any color without any peeling
- Plated bolted connection offers cheaper price comparied with the conial coupler
Specification:
| Item | 600x760mm bolted box trus bar for concerts |
| Material | Aluminum Alloy 6082-T 6 |
| Types | Rectangle |
| Main tubes | 50 x 4 mm |
| Sub-Main tube | 50x 2 mm |
| Braces | 25 x 2 mm |
| Connection type | Plated bolted |
| HS code |
7610900000 |
Length and Weight:
| Length | Weight |
| 50 cm | 8.7 kg |
| 100 cm | 15.7 kg |
| 150 cm | 22.94 kg |
| 200 cm | 30.38 kg |
| 250 cm | 38.19 kg |
| 300 cm | 46.2 kg |
Other length can be custom on request.
Application:
The Heavy Duty Aluminium Truss Bar is widely used for Truss Beam, Roof Truss Support Beam, Truss Beam Bridge, I Beam Roof Trusses.
