2m Height 4x4 Portable Stage Kit for Sale:
This 4x4 Portable Stage Quick is of great value and perfect durable decks for hire business, schools, wedding, concerts, dancing, catwalk, Djs, night clubs, musice, and many other indoor or outdoor events. It is constructed with aluminium frame and 18mm birch tree fiber plywood board covered with a phenolic resin so that the top is protected with a smooth anti-humidity waterproof.
Many clients come to visit and buy our4x8 Portable Stage Platform and lighting trusses, and they are very happy with our quality and service. Most of them are from Nigeria, Kenya, India, Malaysia, UK, Thailand, Columbia, Qatar, USA, ect.
With exntending tubes, its height can be adjustable in several heights according to events situation. Besides, the braces are connected to the legs with a standard4-way cornerby means of a single pin,which makes it much easy to install the whole stage systems only with one technician！
Due to the Portable Stage Decksare firmly fixed inside the frame glooves, and every two decks sharing the same frame, the wholePortable Stage Platform Systemwill not topple over and the whole system can work as ballast system for the Truss Roof System.
Features:
- Waterproof and anti-slip for outdoor and indoor concert events.
- Aluminum frame and lightweight for mobile use.
- DIY fast assembling, no any tools.
- Height adjustable for different situation.
- Interconnected framework acting as ballast systems for truss roof constructions.
- Factory price only.
ITSCtruss always have large quantity of thisPortable Stage Floorsin store for quick delivery on request.
Specification:
| Item | 2m Height 4x4 metal portable stage on sale |
| Material | Aluminum Alloy 6061-T 6 |
| Dimensions | 4 x 4 ft(1.22 x 1.22 m ) |
| Types | Square |
| Main tubes | 50 x 3 mm |
| Stage Topping | 18 mm birch tree fiber plywood with a phenolic resin, anti-slip, waterproof |
| Self-weight | 65kg /pcs |
|
Volume |
0.2 m3/pcs |
| Capacity |
750 kg /m2 |
| HS code |
7610900000 |
How much weight can a 4x4 platform stage hold?
Its capacity is around1125kgin total.
Its canpacity can be 750kg/m2, strong enough even for carrying cars!
It means, a standard4x4 platform portable stagecan hold 1125 kg weight through the whole surface, and the pillars, side pannels, as well as the toppings are must be designed and produced to be capatable of supporting this weight. The heigher platform, the longer pillars and side pannels offered to keep stable and safe at the right height level.
Parts:
The 4x4 portable stage and platform is installed with brace, boards, legs, frame, and base.
Topping options:
The colour of the standard topping is brown plywood, black plywood, red plywood, and acrylic. You can choose any topping on request.
Constructed with alumnium frame and 18mm birch tree fiber plywood topping board, it is covered with a phenolic resin to protect them. After that, the top is protected with a smooth anti-humidity layer and it is watetproof.
How do you build 4x4 Portable Stage Platform?
- Lay the 4 adjustable jack on the floor.
- Put the 4 legs in the screw of the jacks.
- Connect every 2 pillars with the side panels.
- Put the stage topping inside the glooves formed by the 4 side panels.
- Adjust the the whole stage until fixed without any loosing space then finished.
Application:

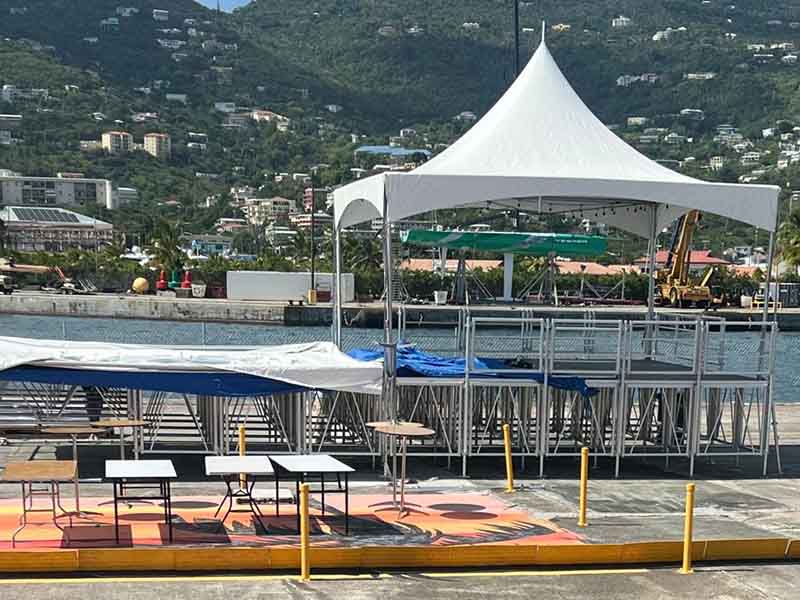

This 4x4 portable stage craigslis is commonly combined with Truss Stage Roof for temporary indoor and outdoor concerts events. if you install them correctly, the whole Potable Stage Systems can work as ballast for the roof.
Problems:
Its maximum height is suggested to be within 6.5 ft (2 m ). If you are supposed to install portable staging system to be more than that height, we recommend you our Stage Truss Systems or 4x4 Steel Ringlock Scaffolding Stage Platform.
