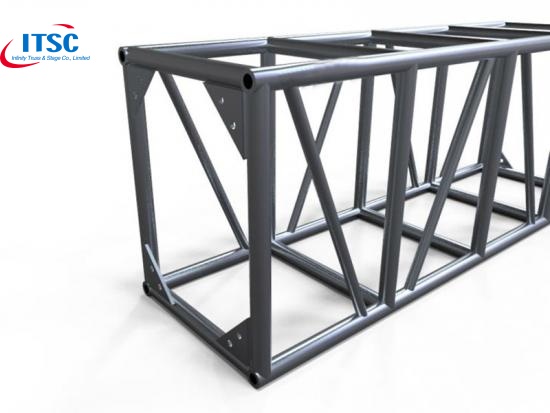

Global Rectangular Black Lighting Box Truss For Big Concerts:
This Black Box Bolt Truss offers Heavy Duty and Long Span for Roof Truss Rigging for stage concerts at more than 24 m span. Its big bolt connection make it cheaper at price.
Features:
- 4- point nodding.
- TUV and SGS approved.
- Free design and technology support.
- OEM and ODM acceptable.
- Powder coating and anodizing to any color without any peeling.
Specification:
| Item | 520x760mm Black Bolted Rectangular Box Truss |
| Material | Aluminum Alloy 6082-T 6 |
| Types | Rectangle |
| Main tubes | 50 x 4 mm |
| Sub-Main tube | 30 x 2 mm |
| Braces | 25 x 2 mm |
| Connection type | Bolt Connection |
Length and Weight:
| Length | Weight |
| 50 cm | 7.5 kg |
| 100 cm | 13.3 kg |
| 150 cm | 19.34 kg |
| 200 cm | 25.38 kg |
| 250 cm | 32.19 kg |
| 300 cm | 39 kg |
Other length can be custom on request.
Application:

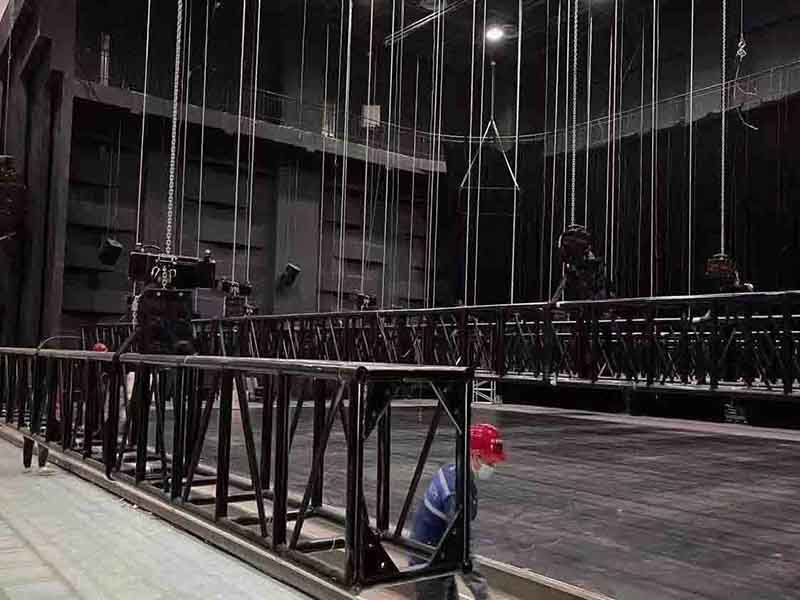

The Heavy Duty Black Rectangular Box Truss is widely used for theatre stages, Truss Beam, Roof Truss Support Beam, Truss Beam Bridge, I Beam Roof Trusses.
