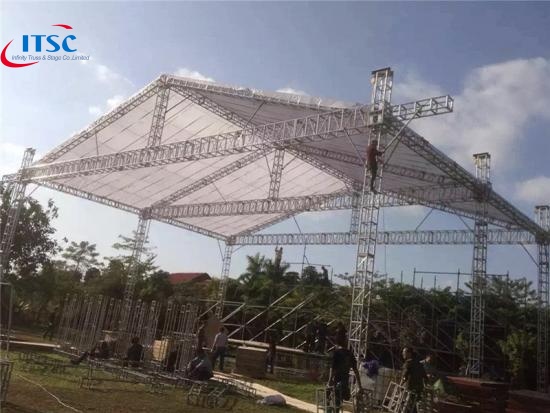

20M Aluminium Triangular Roof Stage Truss System Price:
This Stage Truss System with triangular roof is constructed to be 20W x20m D. It is tower-based structure with a canopy roof,and its beam truss is ITSC-CS52 that offers heavy ducy capacity and safety. It can be also extended to as large dimensions as to be 30x20m just with bigger Heavy Duty Box Truss. Its Price is approx.$100.95/sqm, and Price for 20 x 20m is approx.USD40,200/set.
Features:
- Heavy duty Global Stage Truss System for large outdoor concerts.
- TUV and SGS certificates approved.
- Connical coupler connection ensure quick installation.
- Strengthened sided truss system structure to support.
Specification:
Items | 20x20m Stage Truss System with triangular roof |
Towers | 6 x towers |
Main rigging | 520x520mm/520x760mm/ 600x760mm( The bigger, the stronger) |
Dimensions | 20m x 20m/ 20mm x 14m( The smaller, the less it costs) |
Self-weight | Approx.8600kg( only for truss roof) |
Transportation volume | Approx. 110 m3 |
Loading capcity | Approx. 15300kg |
Max. wind speed | 27.5m/s |
