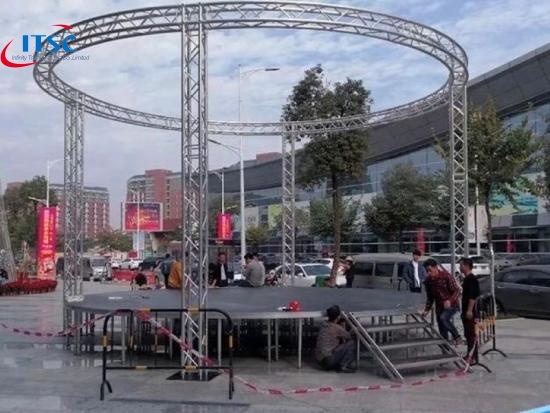

5m Dia Circular Flat Roof Stage Truss Structure:
It is based on the 5m dia Circular Lighting Truss with pillars and equiped with round stage systems under the Circular Flat Roof for outdoor wedding events in Nigeria.
Features:
- Quick to install and lightweight but strong.
- TUV and SGS certificate approved.
- Any size can be custom.
Specification:
Item | 5M Dia Circular Lighting Truss Flat Roof and Round Stage Structure |
Dimensions | 5m dia x 4m H |
Trusses | 290x290mm Global Truss |
Stage | 4.88m Dia 1.22x1.22m aluminium stage decks |
Total weight including truss and stages |
Approx. 916 kg |
Loading capacity for truss structure | Approx. 1767 kg |
Loading capacity for the stages | Approx. 900kg/m2 |
Transportation volume |
Appox. 12 m3 |
Max windspead | 28.4m/s |
