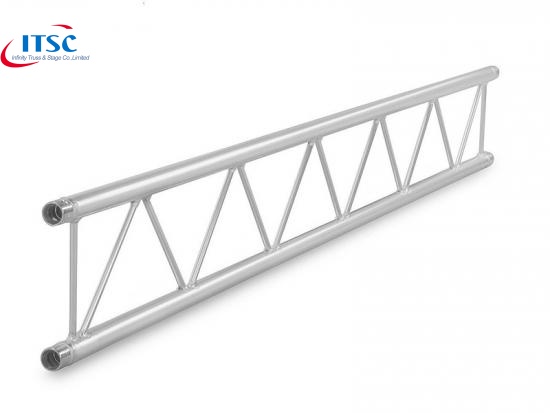

11.5 x 11.55 Inch Global Lighitng Ladder I Beam Truss :
This Global I Beam Ladder Truss can be assembled in vertical or horizontal position. Its Centre Point Load Capacity is 320kg at 6m span. It can be straight, curved and circular and usually adapted for global ladder truss modular rigging system at cheaper price.
This Lighting ladder truss for Events can be 2 kinds of connection to choose:
- Steel bolt screw connection which is cheap in price.
- connical coupller with steel pin which is quick to install.
Features:
- Cheaper price compared with the spigot one.
- Modular and versatile for roof reinforcement and hire.
- Powder coating or anodizing to be any color on request.
- Free design by us.
- Lightweight for ladder framing between trusses or ending truss ladder construction.
Specification:
Item | 11.5" Lightweight Lighting Ladder Truss Kits |
Material | Aluminum Alloy 6061-T 6 / 6082-T 6 |
Types | Ladder |
Main tubes | 50 x 2 mm |
Braces | 25 x 2 mm |
Connection type | Bolt |
HS code |
7610900000 |
Length and Weight:
Length | Weight |
50 cm | 1.75 kg |
100 cm | 2.6 kg |
150 cm | 3.45 kg |
200 cm | 4.3 kg |
250 cm | 5.15 kg |
300 cm | 6.0 kg |
Other length can be custom on request.
Application:
The Lighting Ladder Truss Package is commonly applied to install the truss roof systems to support the whole pyramid roof, curved roof or arc roofs.
